Differential Air Shaft vs Mechanical Shaft: Which Is Better for Your Slitting Machine?

When your slitting machine is running multiple rolls of different widths or materials simultaneously, the shaft you choose determines whether your rolls wind evenly — or telescope, crush, and waste film. For small and mid-size converters across Gujarat and the rest of India, the choice between a differential air shaft and a conventional mechanical keyway shaft is one of the most impactful equipment decisions you will make. This guide breaks down the mechanics, costs, and real-world trade-offs of both so you can choose with confidence.

What an Air Shaft Actually Does

An air shaft — also called an air-expandable shaft — is the rotating shaft that grips the inside of a paper or plastic core and holds the roll firmly while it winds or unwinds. The defining feature is in the name: when you connect compressed air through a valve at one end, internal elements expand outward against the core's inner wall, locking the roll in place. Release the air, and the elements retract so the roll slides straight off.

That simple action solves the biggest daily frustration in any converting unit — changeover. Instead of wrestling rolls on and off a solid shaft, the operator inflates to grip and deflates to release, in seconds. A well-built air shaft from Yogi Engineering Works fits standard core inner diameters of 3", 4", 6", and 8", carries roll loads up to around 2 tons, and runs at line speeds up to 1000 metres per minute — the range that covers the vast majority of film, foil, paper, and tape slitting work in India.

The mechanical keyway shaft, by contrast, is a solid steel shaft with a fixed key or adapter that the core sits on. It grips through interference fit and friction rather than air pressure. It is simpler, cheaper, and perfectly adequate for some jobs — but as we will see, it cannot do several things the air shaft does effortlessly.

It helps to picture both shafts in the actual web path. On a slitter, you typically have an unwind shaft holding the parent jumbo and one or more rewind shafts building the finished rolls. The unwind shaft mainly needs to grip securely and pay out under controlled brake tension; the rewind shaft has the harder job, because it must wind each finished roll to a precise, even tension as the diameter grows. This is exactly where shaft technology earns or loses you money — and where the gap between a mechanical shaft and a differential air shaft becomes most visible on the finished product.

The Differential Air Shaft — and Why It Changes Multi-Roll Slitting

This is the single most important concept for any converter slitting multiple narrow rolls across one shaft. When you slit a wide jumbo into, say, eight tape rolls side by side, the slit webs are never perfectly identical. Tiny differences in thickness, gauge, and tension mean some rolls build up diameter slightly faster than their neighbours on the same shaft.

On a standard shaft, every roll is locked to the same rotational speed. The faster-growing rolls pull tighter, the slower ones go slack — and you get a mix of over-tight, crushed cores and loose, telescoping rolls off a single run. The differential air shaft solves this elegantly. Each core sits on its own friction element that can slip independently, so each roll winds at its own matched tension even though they share one shaft. Rolls of slightly different diameters all come off tight, even, and saleable.

For a tape, label, or film converter, this is transformational. It is the difference between running eight rolls per pass with confidence and being forced to run fewer rolls, or accepting a reject rate on the outer positions. If your business model depends on slitting multiple narrow rolls economically, a differential air shaft on your slitting rewinding machine is not optional — it is the technology that makes the job profitable.

Head-to-Head: The Six Factors That Decide

Here is how the two shaft types compare on the criteria that actually affect your daily output and cost.

1. Tension control

The air shaft wins decisively. A standard air shaft holds a single roll firmly with uniform grip, and a differential air shaft delivers independent, matched tension across many rolls. A mechanical keyway shaft offers no differential tension at all — every roll is locked together, so any variation in web build-up becomes a defect.

2. Multi-roll winding

For slitting several rolls in one pass, only the differential air shaft handles diameter variation correctly. The mechanical shaft can physically hold multiple cores, but without independent slip it produces uneven rolls when widths or gauges differ even slightly.

3. Changeover speed

Air shafts are dramatically faster. Inflate to grip, deflate to release — roll changes take seconds and need no tools. Mechanical keyway shafts require manual fitting and removal, often with mallets and adapters, adding minutes to every changeover. On a line doing many changeovers a shift, this difference compounds into hours of lost capacity per week.

4. Core gripping

An air shaft grips the full core inner diameter evenly through its expanding lugs or leaves, protecting the core and centring the roll. A mechanical shaft grips only at the key, which can score or split cores and allow the roll to run slightly off-centre.

5. Cost

The mechanical keyway shaft is the lower-cost option up front — its simplicity is its main commercial advantage. The air shaft costs more initially, but that premium is usually recovered quickly through higher throughput, lower scrap, and faster changeovers.

6. Maintenance

Mechanical shafts have almost nothing to maintain. Air shafts need periodic attention to the air valve, bladder or tubes, and grip elements — straightforward routine service, but a real consideration in dusty shop-floor conditions.

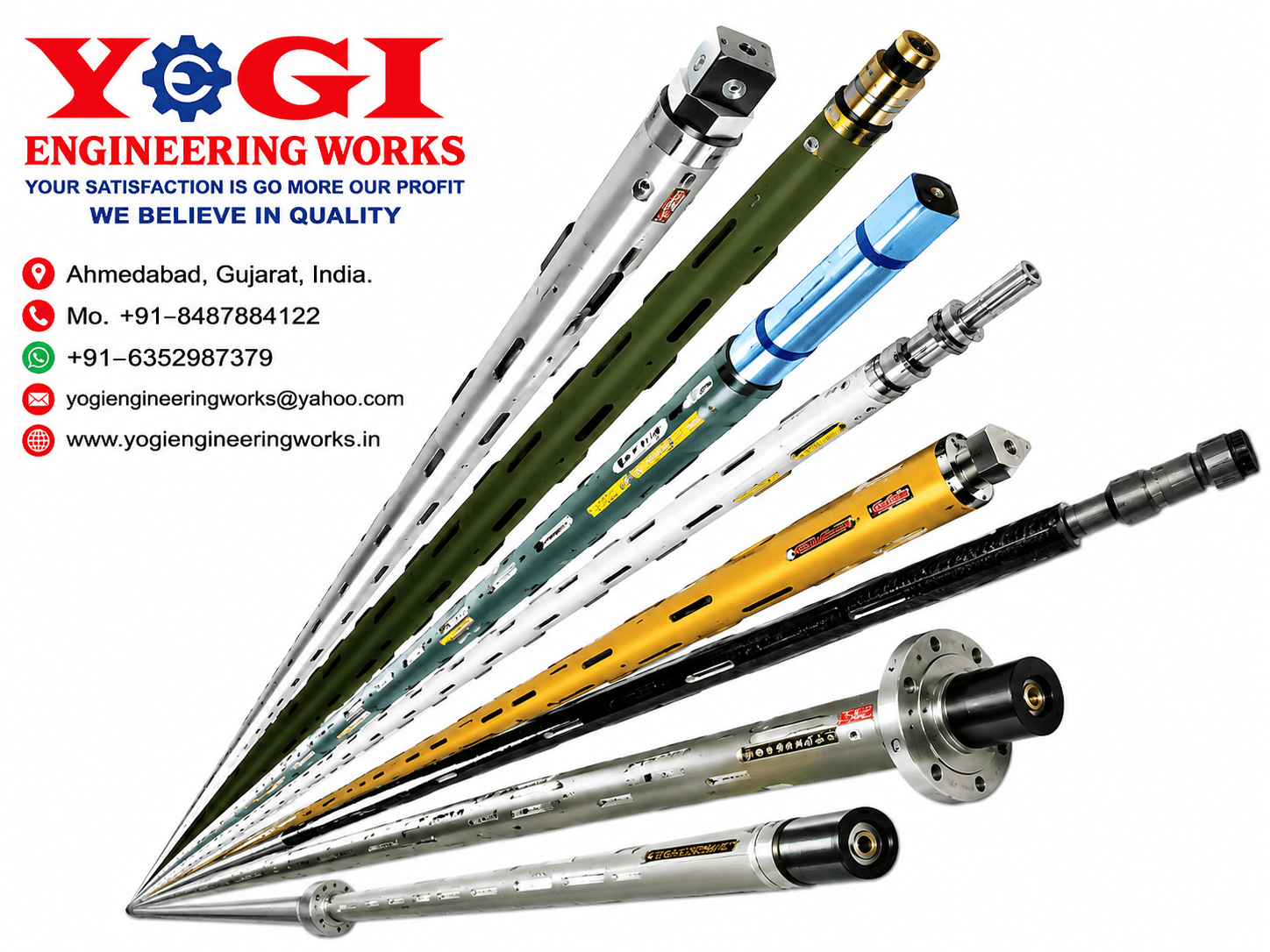

Types of Air Shaft — Lug, Ball, Leaf and Carbon-Fibre

Not all air shafts are the same. The gripping mechanism and the shaft material are both chosen to suit the application.

• Lug type: Rows of metal lugs pop out through slots when inflated, gripping the core at multiple points. This is the workhorse for paper cores and general slitting and rewinding — strong, reliable, and economical.
• Ball type: Hardened steel balls expand to grip the core. Compact and well-suited to narrow cores and lighter loads, often used in smaller rewinders and where a slim shaft body is needed.
• Leaf type: Continuous metal leaf strips expand to contact the core over a large surface area, distributing grip evenly. This is the preferred choice for thin or delicate cores and for high-quality film winding, and it forms the basis of most differential designs.
• Carbon-fibre: A carbon-fibre shaft body dramatically reduces weight versus steel, lowering inertia for high-speed lines and making manual handling far easier on wide machines. It also resists deflection on long spans, keeping the roll true.

Choosing among lug, ball, leaf, and carbon-fibre depends on your core size, roll weight, line speed, and material. Our engineers specify the grip type and shaft body to match — rather than supplying a one-size-fits-all shaft that compromises on some jobs.

Matching the Shaft to Your Application

The right answer genuinely depends on what you run. Use these practical guidelines.

Choose a mechanical keyway shaft when

• You wind one roll at a time, full width, with no need for differential tension.
• Your changeovers are infrequent and you are highly cost-sensitive.
• Your line speed and roll weights are modest and grip precision is not critical.

Choose an air shaft when

• You slit multiple rolls across one shaft and need each to wind tight and even — this demands a differential air shaft.
• You change rolls frequently and want to cut changeover time on your slitting rewinding machine.
• You handle thin films, foils, or delicate cores where even grip and roll quality matter.
• You run at higher speeds and heavier roll loads, where a carbon-fibre or leaf-type shaft pays off.

In our experience, most growing converters in India start with mechanical shafts on their first basic machine and move to air shafts — and specifically differential air shafts — the moment they begin slitting multiple narrow rolls for tape, label, or film customers. That is the point where roll quality and changeover speed start to limit revenue, and the air shaft removes the ceiling.

The Real-World ROI of Upgrading

The case for an air shaft is rarely about the shaft price; it is about what the shaft unlocks. Consider the two biggest gains. First, changeover time: a line doing, say, ten changeovers a shift can easily save several minutes each, recovering 30–60 minutes of productive machine time per shift. Over a year of double-shift operation, that is hundreds of additional running hours from the same machine and operator. Second, scrap reduction on multi-roll runs: when a differential shaft lets you wind eight even rolls instead of accepting rejects on the outer positions, the saved film and the saved reprocessing flow straight to margin.

Put together, the additional cost of an air shaft over a mechanical one is typically recovered within months on a busy converting line, after which the gains are pure profit. The mechanical shaft remains the right call for genuinely simple, single-roll, cost-driven jobs — but for any operation slitting multiple rolls or changing over frequently, the air shaft is the equipment that lets the machine earn to its potential.

There is also a safety and ergonomics angle that is easy to overlook. Forcing heavy rolls on and off a tight mechanical shaft is physically demanding and a common cause of strain injuries and dropped rolls on Indian shop floors. Air-shaft loading is a controlled, low-effort operation — inflate, slide, deflate — which reduces handling injuries and lets a single operator manage changeovers that previously needed two people. On wide, heavy lines, a carbon-fibre air shaft compounds this benefit by cutting the dead weight the operator handles, while its low inertia also reduces the load on the machine's drive and brake during acceleration and stopping. These are not headline numbers, but over a year they show up as fewer injuries, lower labour dependence, and less wear on the line.

One practical buying tip: do not over-spec or under-spec the shaft. A shaft rated well below your heaviest roll will deflect and grip poorly; one rated far above your needs wastes capital and adds unnecessary weight. Tell your supplier your real maximum roll weight, core sizes, line speed, and how many rolls you slit per pass, and let them size the shaft and grip type to that envelope. Matching the shaft to the actual duty cycle is what delivers both reliability and value.

Why Yogi Engineering Works

Yogi Engineering Works is an Ahmedabad, Gujarat based, ISO 9001:2015 certified manufacturer of air shafts, slitting machines, and converting accessories. We build lug, ball, leaf, and carbon-fibre air shafts — including differential air shafts for matched multi-roll tension — for 3", 4", 6", and 8" cores, roll loads up to around 2 tons, and line speeds up to 1000 metres per minute. Every shaft is made to your core size, roll weight, and machine, not pulled from a generic catalogue.

You get factory-direct pricing, on-site installation, operator training, and lifetime spares support, backed by a team that understands Indian converting conditions. Our equipment runs across India and is exported to the UAE, Saudi Arabia, Bangladesh, Sri Lanka, Kenya, and South-East Asia. To specify the right shaft for your line, message us on WhatsApp at +91-8487884122.

Frequently Asked Questions

What is the difference between an air shaft and a differential air shaft?

A standard air shaft grips and holds the roll uniformly. A differential air shaft adds independent friction elements so multiple rolls of slightly different diameters can wind at matched tension on one shaft — essential for multi-roll slitting.

What core sizes do air shafts fit?

Our air shafts are built for standard 3", 4", 6", and 8" core inner diameters, with custom sizes available on request.

Is a mechanical shaft ever the better choice?

Yes — for single-roll, full-width winding with infrequent changeovers and a tight budget, a mechanical keyway shaft is simpler, cheaper, and almost maintenance-free.

How much maintenance does an air shaft need?

Routine attention to the air valve, bladder or tubes, and grip elements keeps it reliable. It is straightforward service, but worth scheduling in dusty shop-floor environments.
