Doctoring Cum Slitting Rewinding Machine
Doctoring Cum Slitting Rewinding Machine for LD, PP, film, pouch & foil — inspection (doctoring) plus 5-cutter slitting. 400–1000 mm width, encoder feedback.
Factory-direct pricing, custom-built to your width, speed & material. Share your requirement for a quick quotation.
- Made in India
- Pan-India delivery in 4–6 weeks
- Lifetime spares support
- Machine StructureMS Plate Heavy Duty, Cantilever Type
- Maximum Roll Width400 mm to 1000 mm Standard
- Roll DiameterUp to 500 mm
- SlittingCutter assembly – 5 cutters
- Motor3 HP AC
- Control PanelAC Digital Frequency Drive + Encoder feedback
About this machine

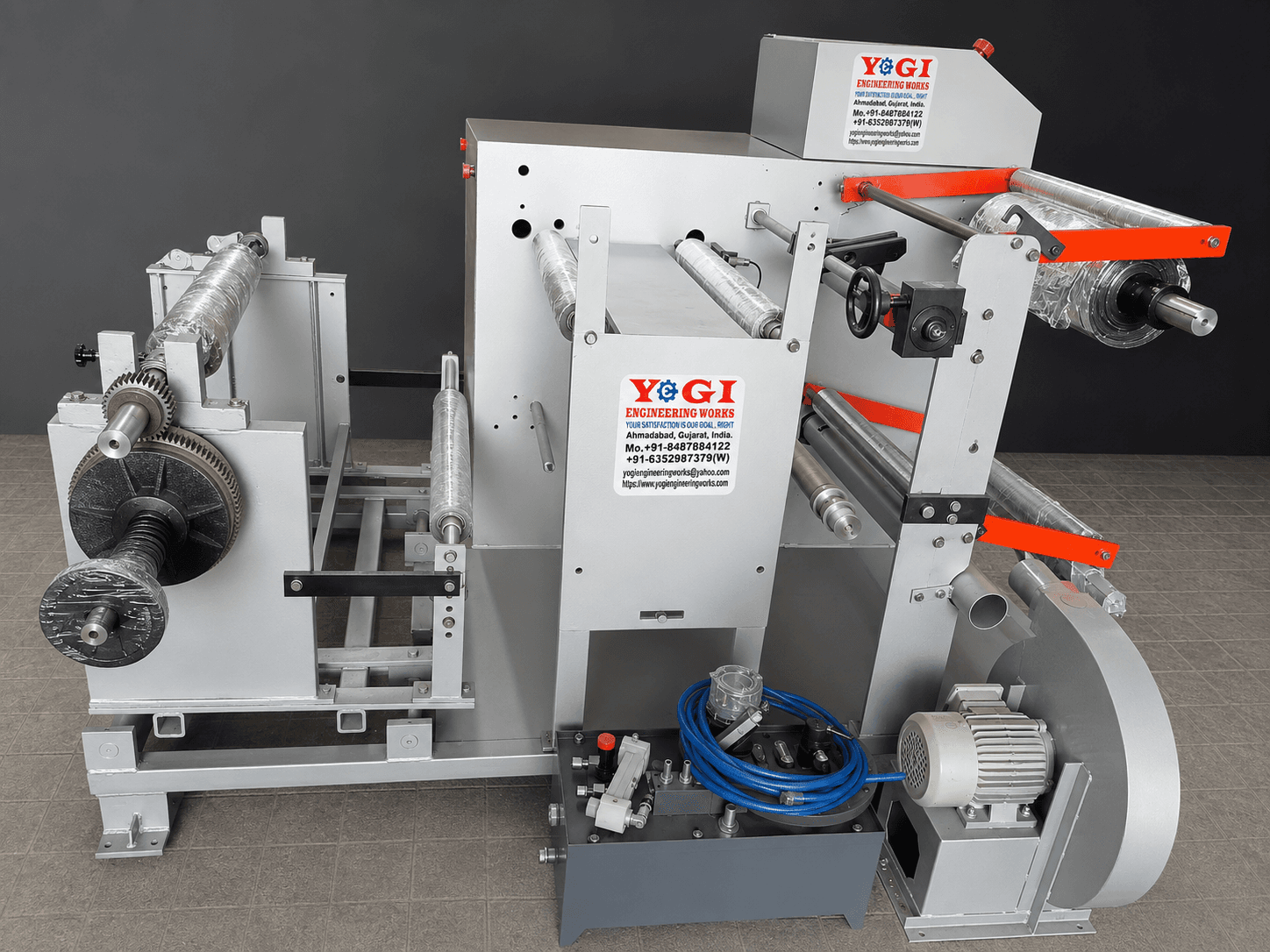

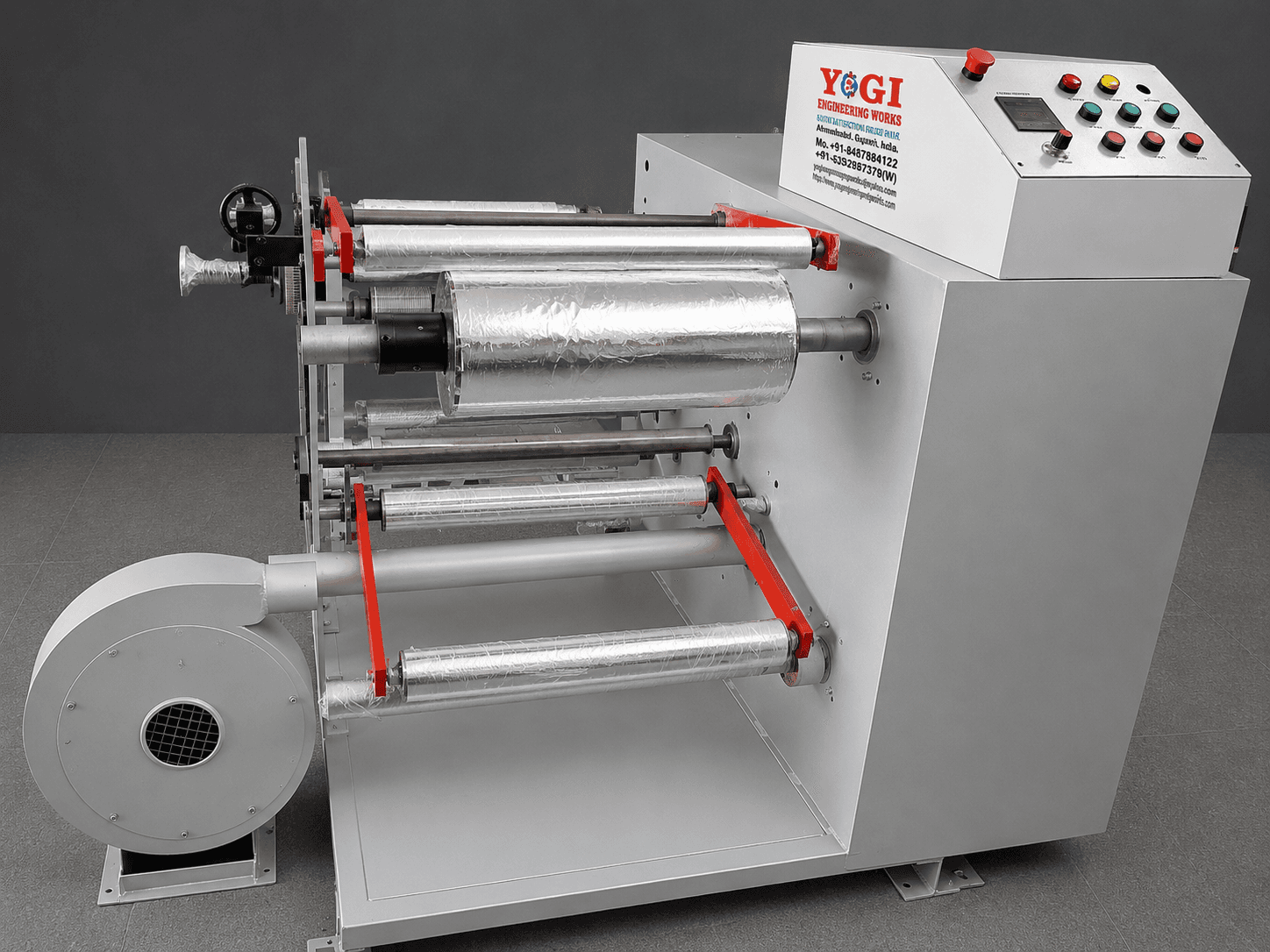

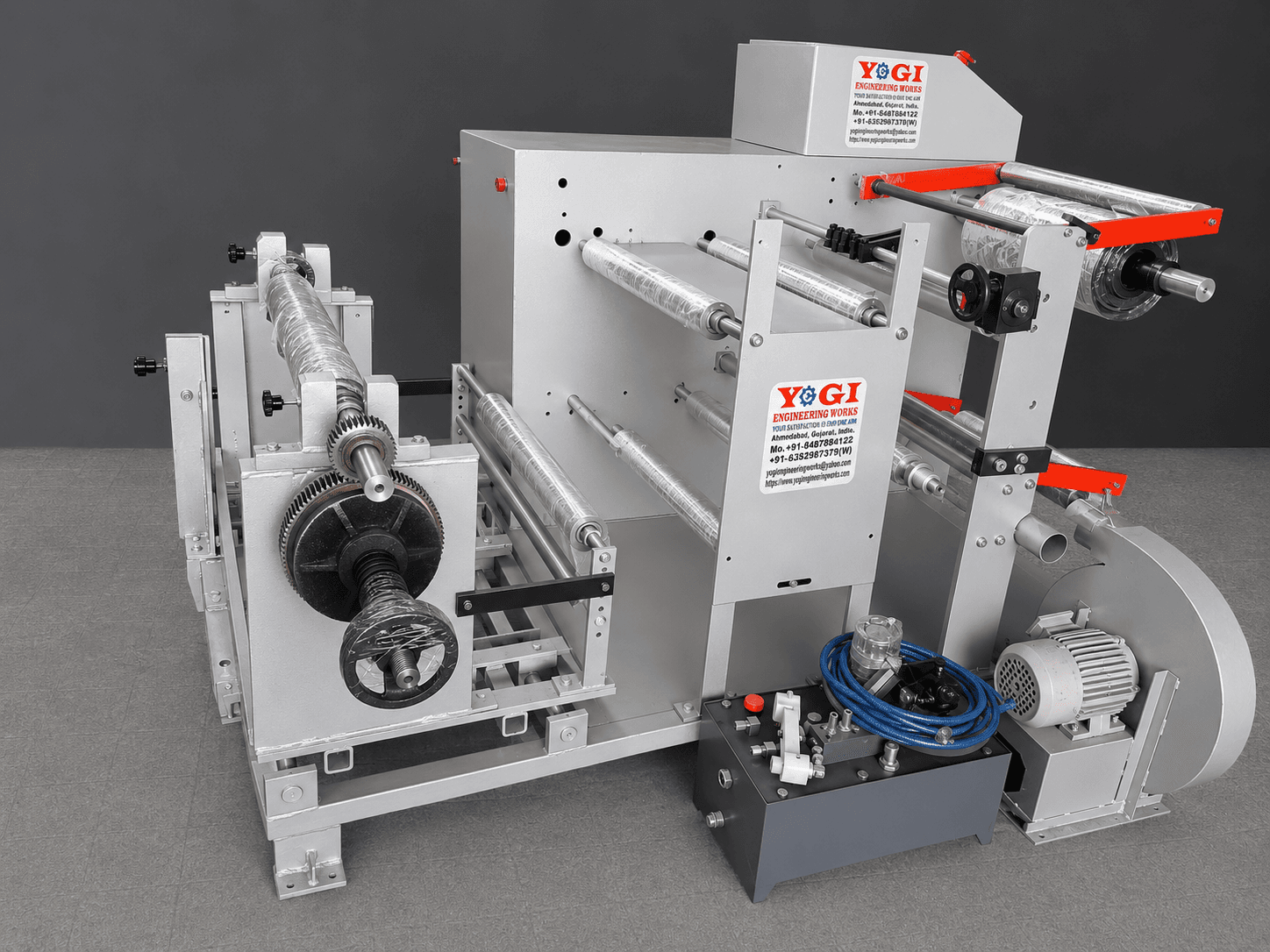

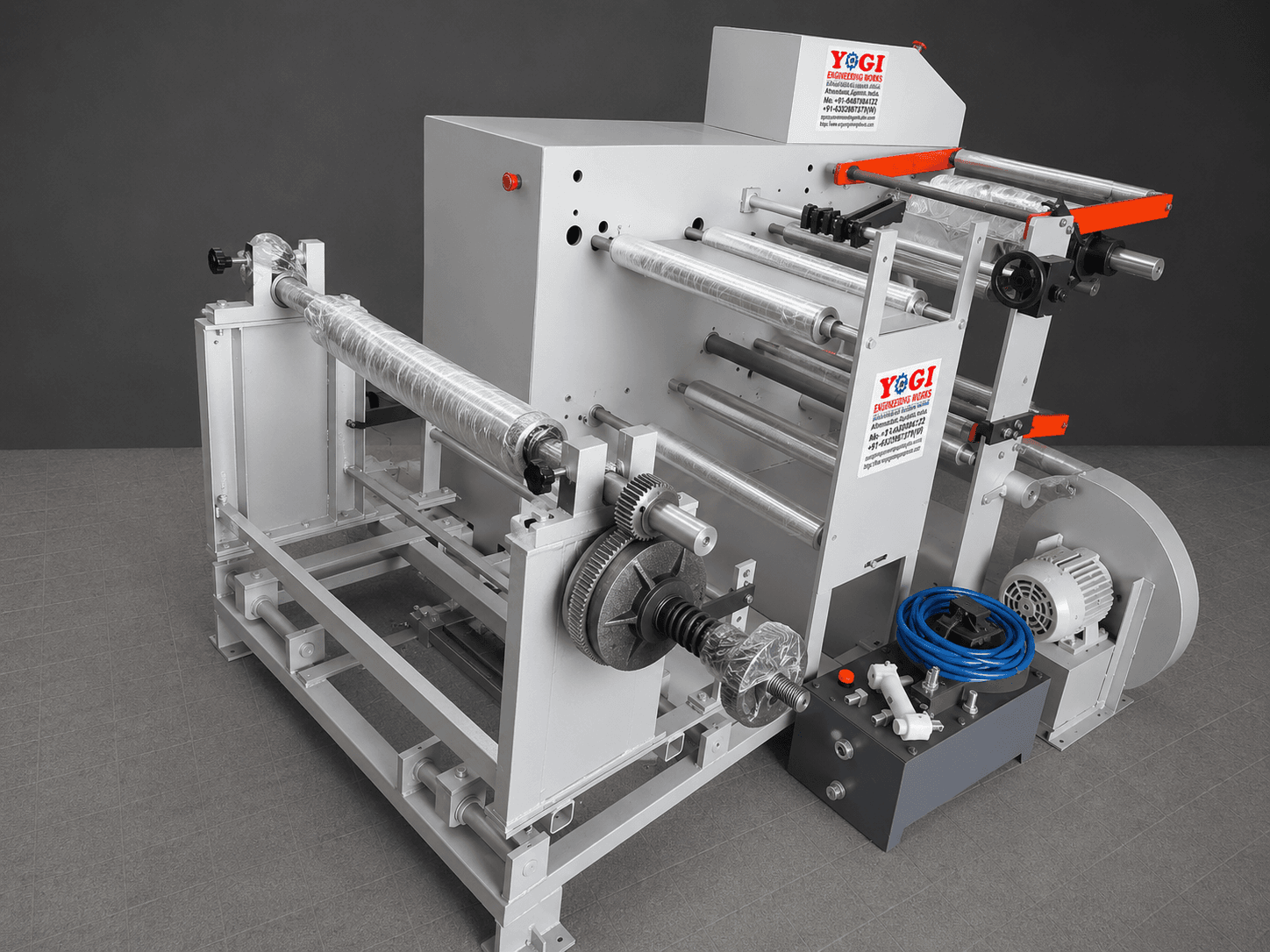

Yogi Engineering Works's Doctoring Cum Slitting Rewinding Machine combines roll inspection (doctoring) with slitting in one cantilever-type machine. Built on a heavy-duty MS plate structure, it handles LD, PP, film, pouch and foil with a maximum roll width of 400–1000 mm and unwinder/rewinder roll diameter up to 500 mm. It uses a 3 HP AC motor with AC digital frequency drive (start/stop, length counting meter, speed sensor, emergency stop), encoder feedback, a slitting system with 5 cutters, a blower system for trim arrangement, mechanical shaft unwinder/rewinder, a mechanical brake for jumbo tension and a hydraulic web (edge) guide system. Rewinding speed 100 MPM; jumbo roll capacity 50 kg.
Full specifications
| Machine Structure | MS Plate Heavy Duty, Cantilever Type |
|---|---|
| Maximum Roll Width | 400 mm to 1000 mm Standard |
| Roll Diameter | Up to 500 mm |
| Slitting | Cutter assembly – 5 cutters |
| Motor | 3 HP AC |
| Control Panel | AC Digital Frequency Drive + Encoder feedback |
| Web Guide | Hydraulic edge guide system |
| Rewinding Speed | 100 MPM |
| Power Supply | Three Phase 415 V / 50 Hz |
Key features
- Doctoring (inspection) + slitting in one machine
- Slitting system with 5 cutters
- Encoder feedback for accurate operation
- Blower system for trim arrangement
- Mechanical brake system for jumbo tension
- Hydraulic web (edge) guide system
Optional add-ons
- Air shaft – unwinder & rewinder side
- Electrical web (edge) guide & line guide system
- Auto tension control system
