Rotogravure Printing Machine
High-speed Rotogravure Printing Machine for BOPP, polyester, LD, PVC and all plastic films — single colour to 10 colours, 300–1000 mm web width, with front & reverse printing.
Factory-direct pricing, custom-built to your width, speed & material. Share your requirement for a quick quotation.
- Made in India
- Pan-India delivery in 4–6 weeks
- Lifetime spares support
- Machine TypeRotogravure (Roto) Printing
- Web Width300 mm to 1000 mm
- ColoursSingle colour up to 8–10 colours
- PrintingFront & Reverse printing facility
- RegistrationVertical & horizontal, adjustable while running
- DryingHot-air dryers with heaters & blowers per station
About this machine

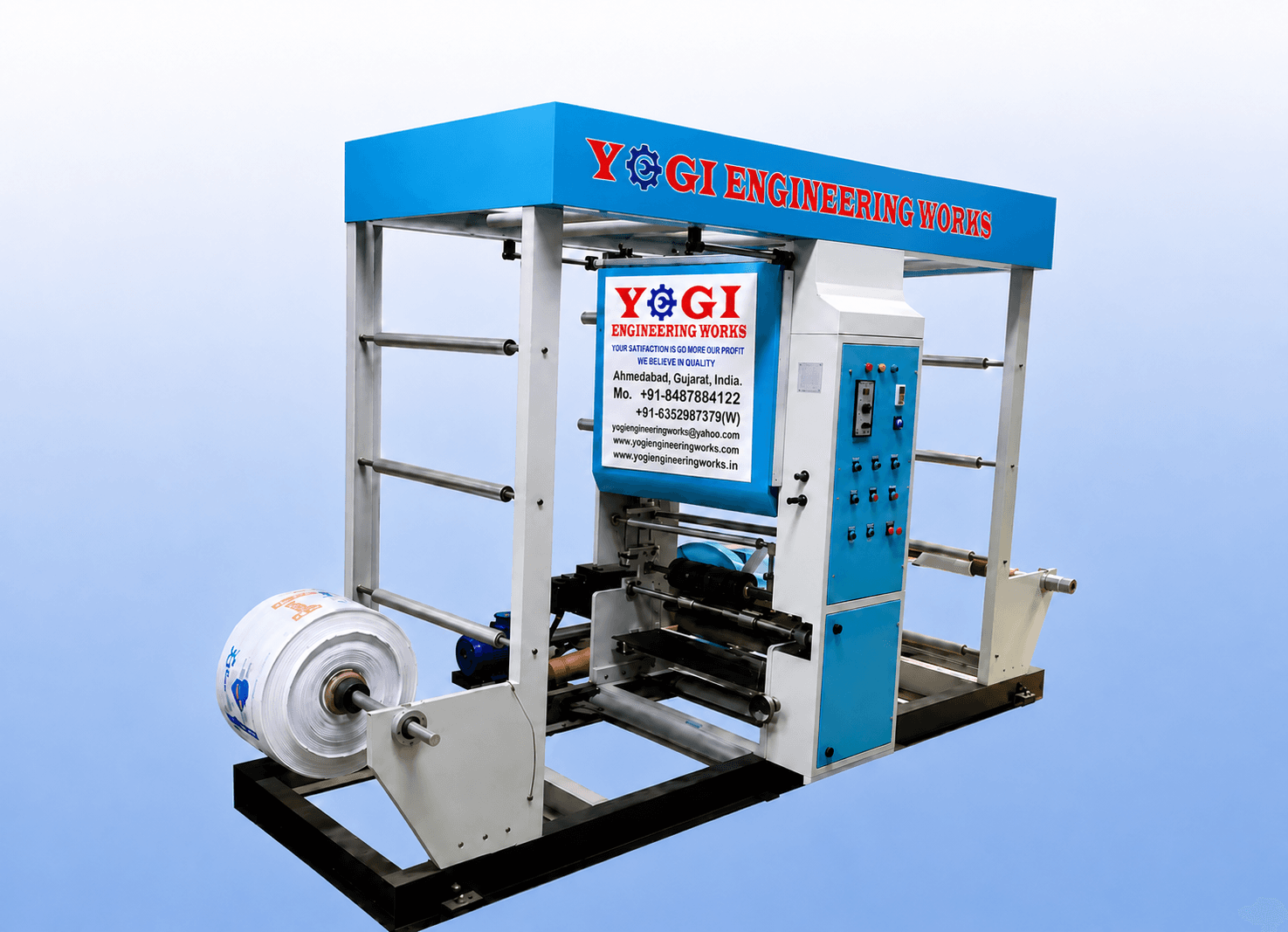

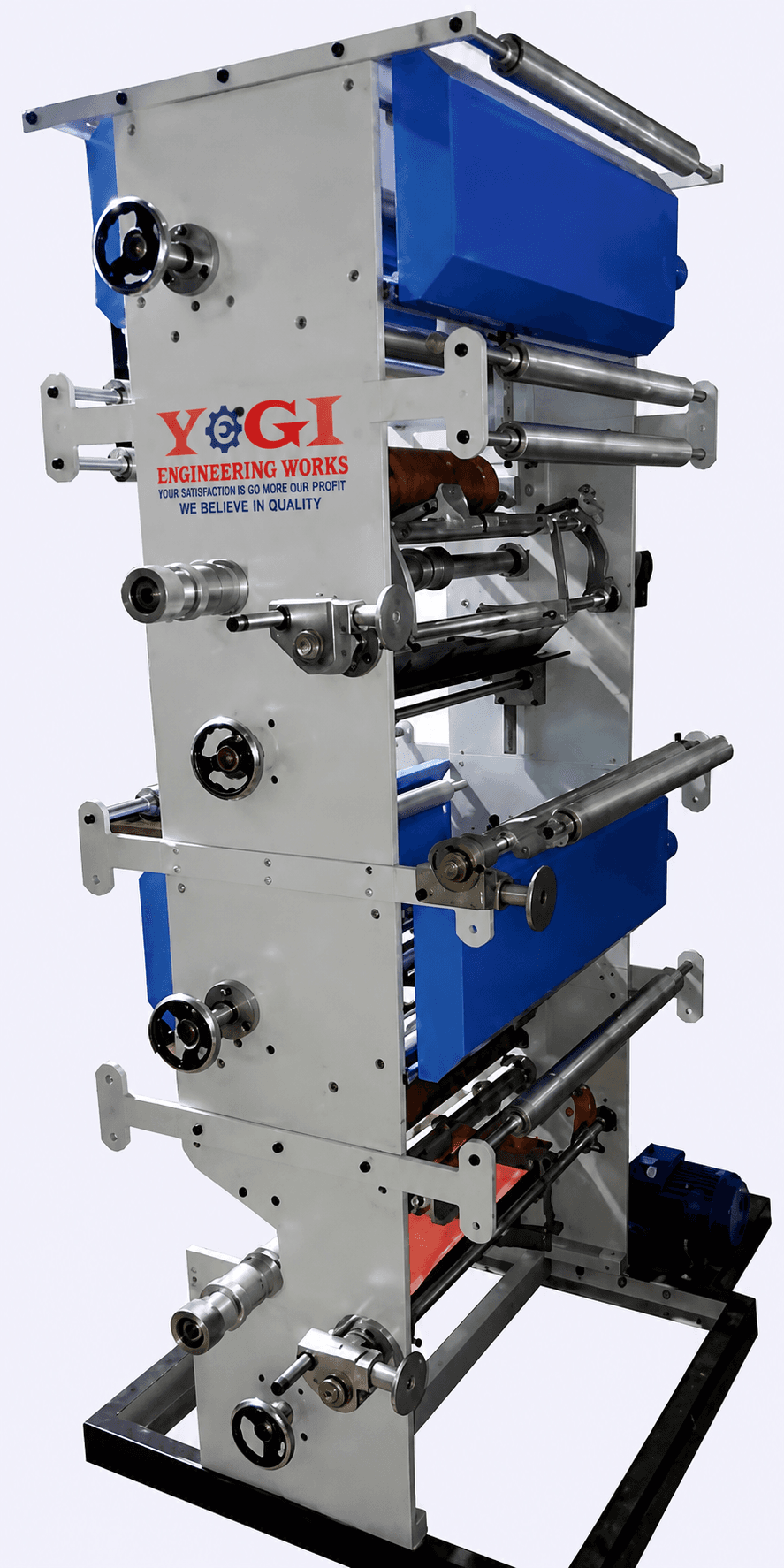

Yogi Engineering Works's Rotogravure Printing Machine consists of unwinding units, printing stations and drying chambers fitted with blowers on each individual printing station. The rewinding station uses a friction-type mechanical clutch system, and every printing station has vertical and horizontal registration that can be adjusted while the machine is running. The doctor blade assembly is spring-loaded with lateral oscillation to extend the life of the printing cylinders. Available in a wide range of web widths and colour configurations — from single colour up to 10 colours — with optional front & reverse printing, a high-efficiency drying system with heaters & blowers, and web aligner control. Designed and constructed to meet high standards of flexible packaging printing.
Full specifications
| Machine Type | Rotogravure (Roto) Printing |
|---|---|
| Web Width | 300 mm to 1000 mm |
| Colours | Single colour up to 8–10 colours |
| Printing | Front & Reverse printing facility |
| Registration | Vertical & horizontal, adjustable while running |
| Drying | Hot-air dryers with heaters & blowers per station |
| Doctor Blade | Spring-loaded with lateral oscillation |
| Power Supply | Three Phase 415 V / 50 Hz |
| Country of Origin | Made in India |
Key features
- Individual drying chamber with blower per printing station
- Vertical & horizontal registration adjustable during running
- Spring-loaded doctor blade with lateral oscillation
- Friction-type mechanical clutch rewinding station
- Front & reverse printing option
- Web aligner / guiding control system
- High-efficiency, smooth and fast printing
Optional add-ons
- Pneumatic / air shaft upgrade
- Auto Tension Control System Load Cell - Break
- Electrical web (edge) guide & line guide system
- High Speed - 3 Driver System
