Web Guiding System

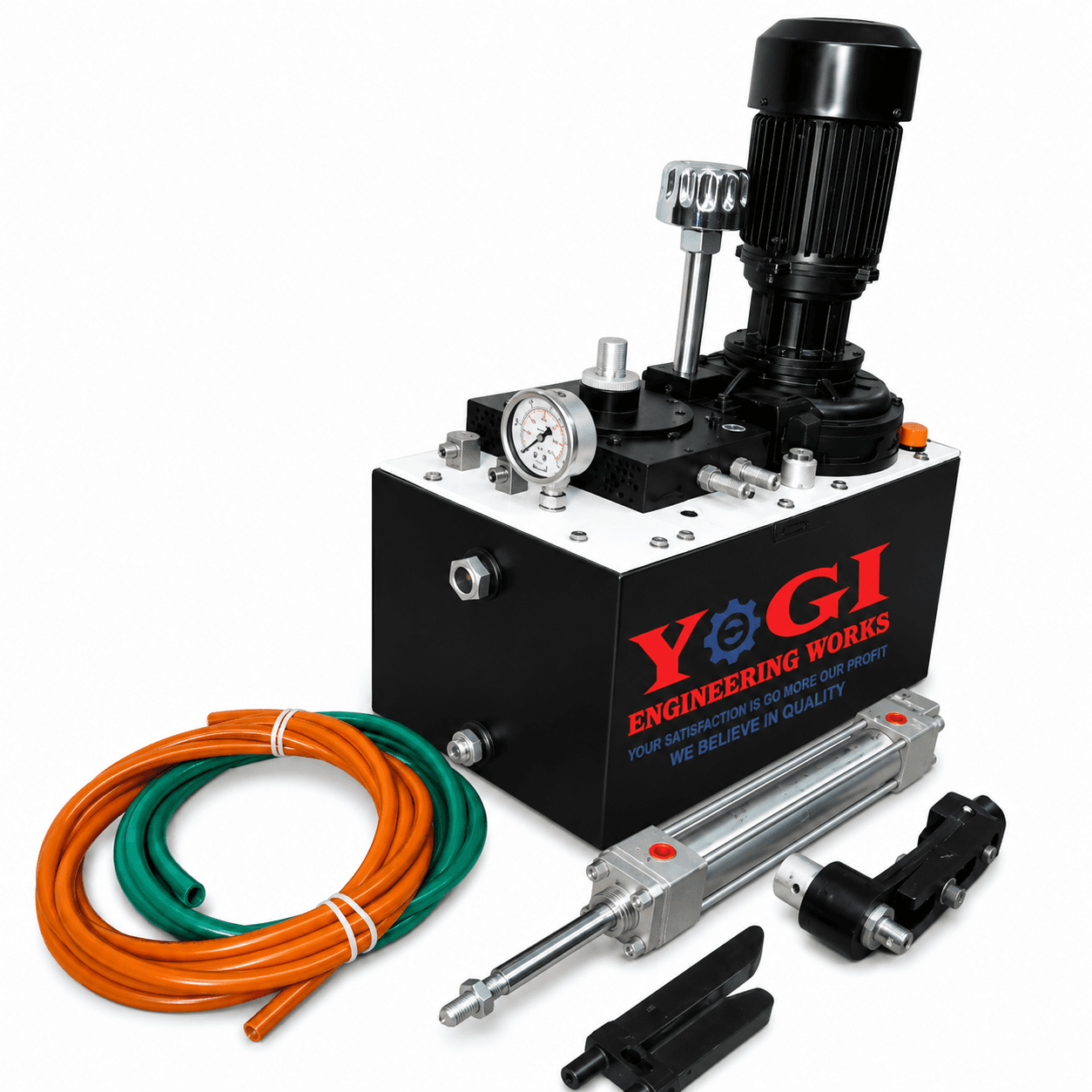

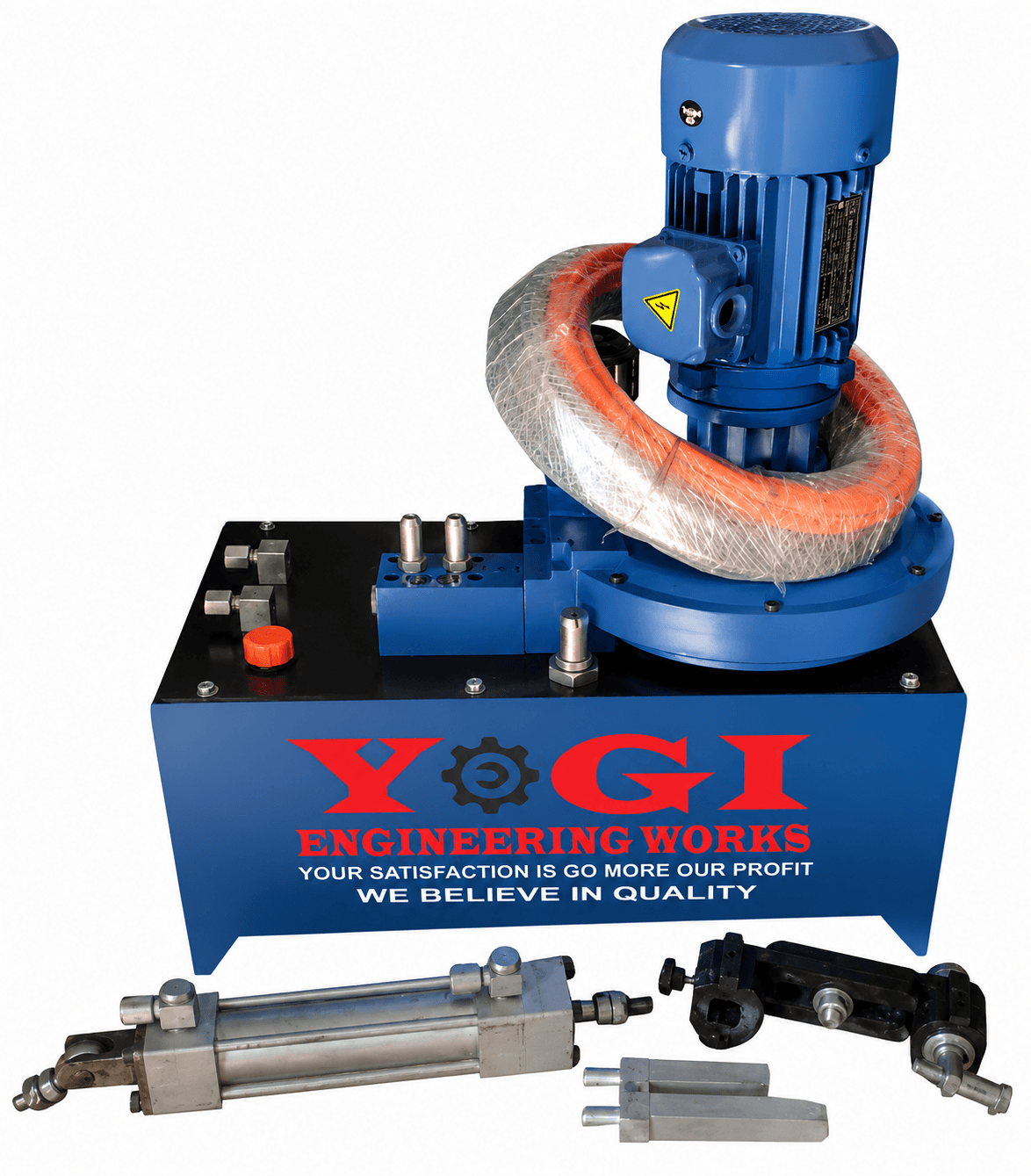

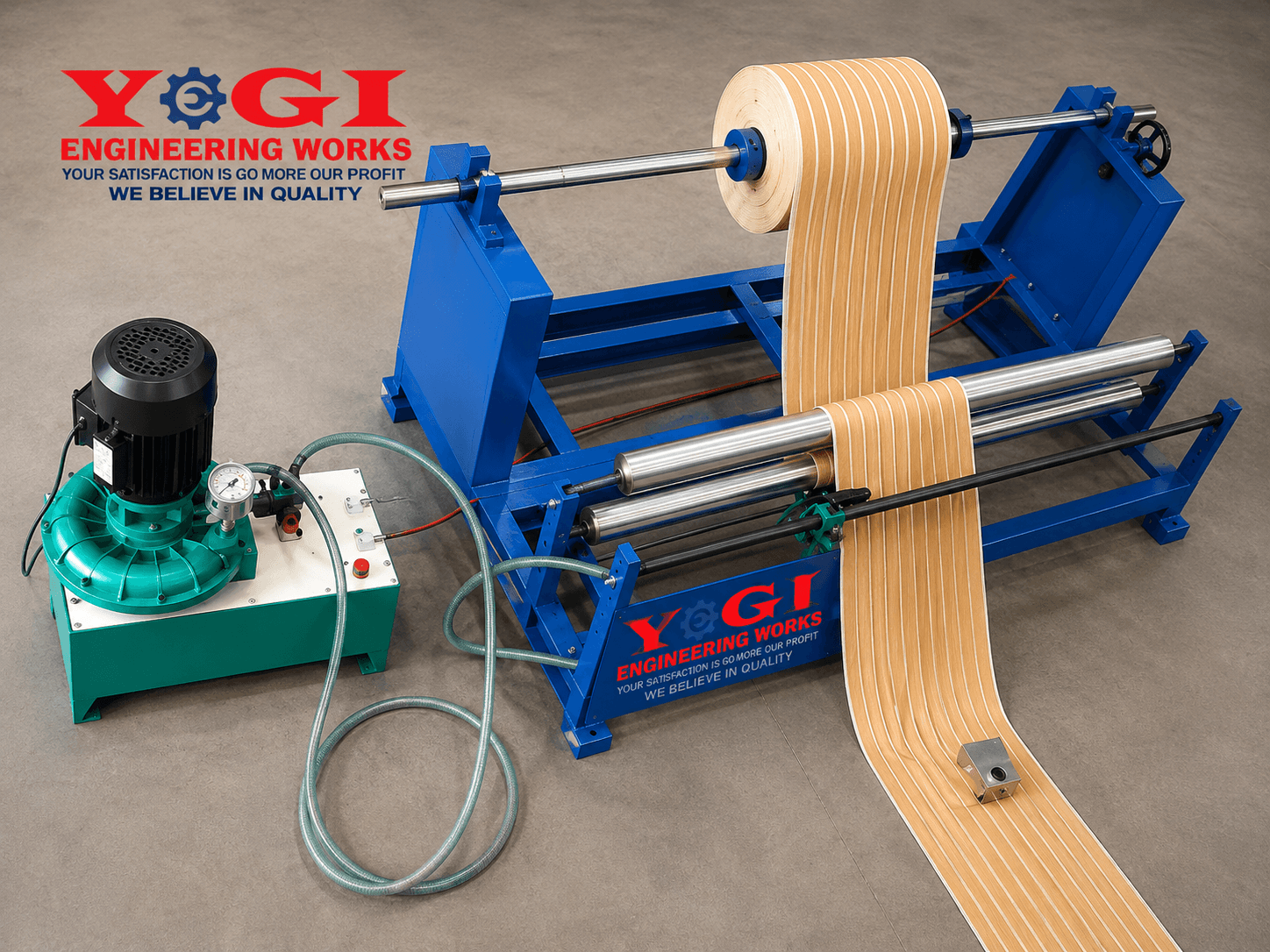

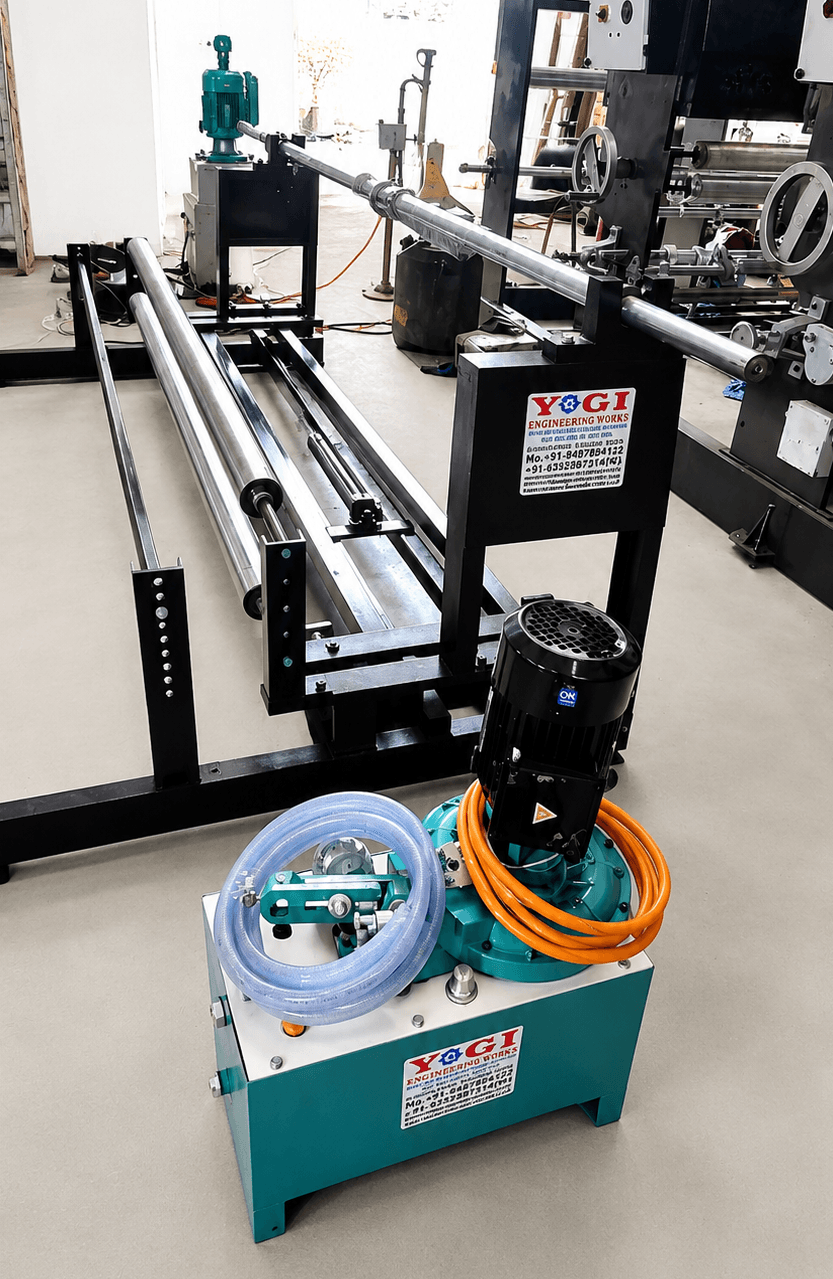

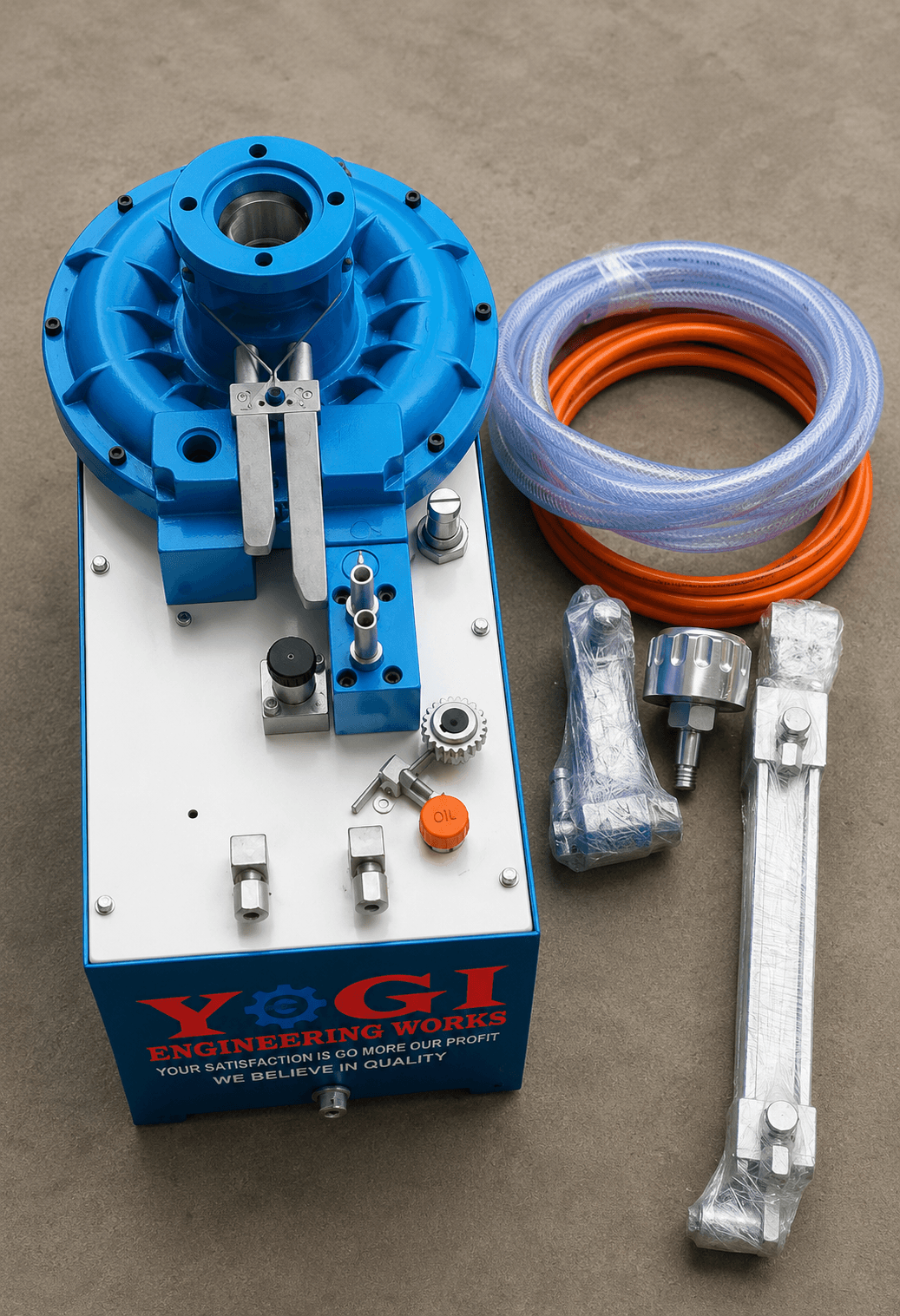

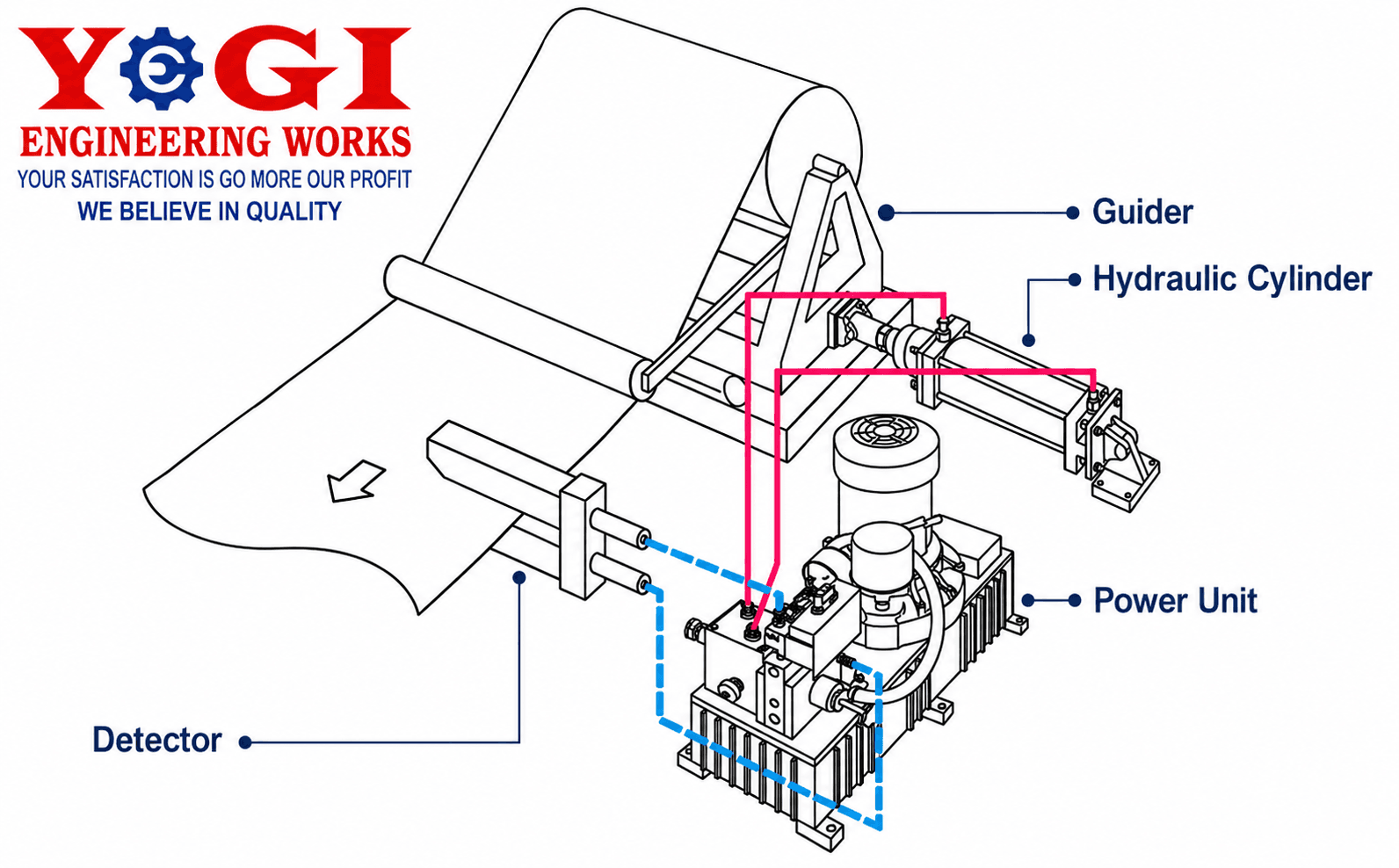

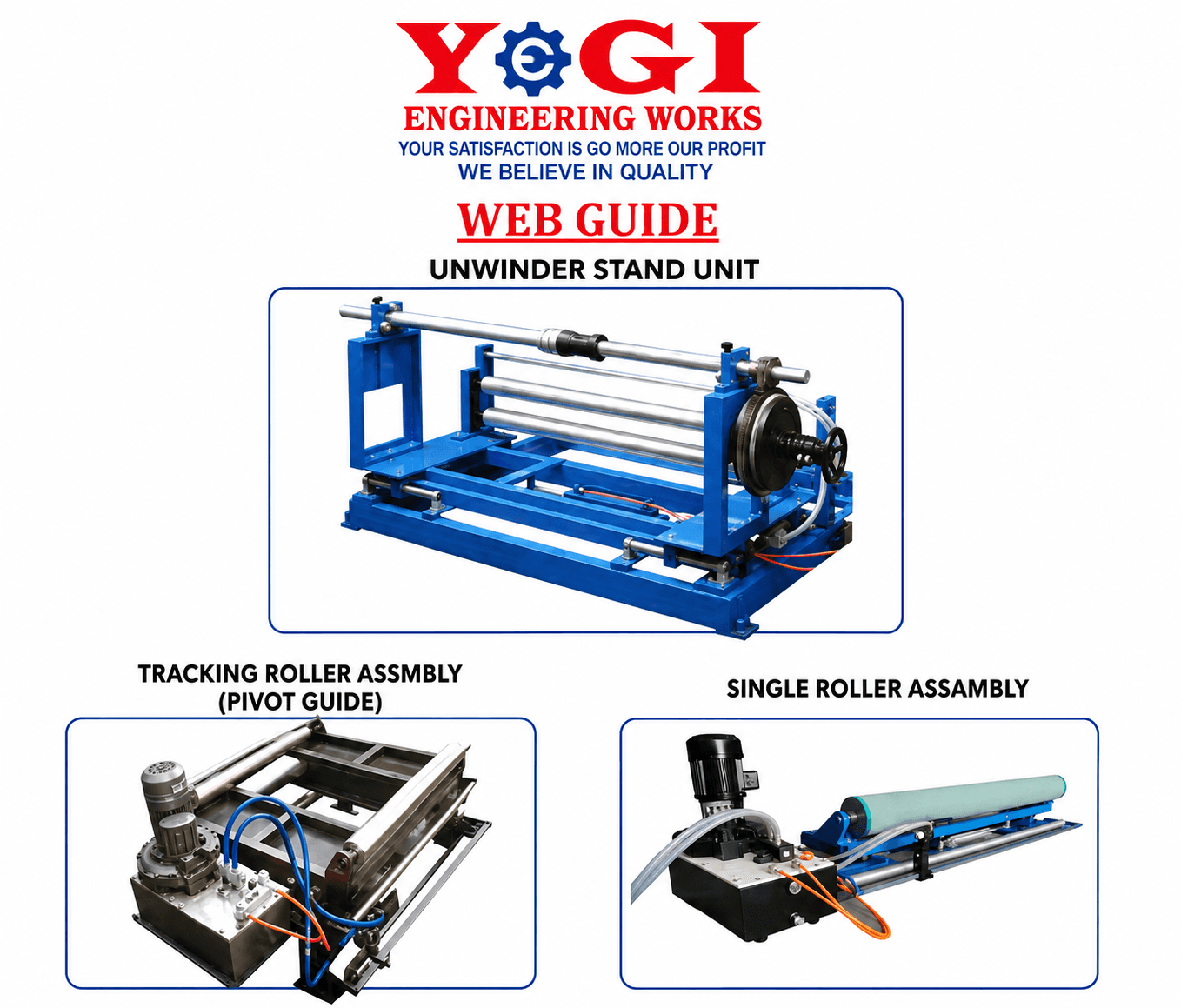

A web guiding system is the closed-loop steering unit that keeps a moving film, foil or paper web travelling on a perfectly straight path as it runs through a machine. Often called a web aligner or web guide system, our unit pairs an SRA-TRA guide roller assembly with a hydro-pneumo power pack. An edge sensor continuously detects the exact position of the web edge; the instant the web starts to wander, the actuator shifts the guide roller frame sideways and corrects the lateral drift in real time. Because the correction happens in milliseconds, the web stays centered to within a fraction of a millimetre even at high line speeds. It is supplied as a complete web aligner with SRA-TRA assembly, or mounted as an unwinder trolley with web guide for retrofit work on an existing line. Active guiding removes the single biggest cause of rejected output: a web that creeps off line. Without it, rolls telescope, slit widths drift out of tolerance and edges fold over, problems that typically waste around 3% of every jumbo. By holding the web true, the guide protects slit accuracy, eliminates telescoping and keeps wound rolls clean and saleable.

Across Gujarat's GIDC packaging belt and converting units pan-India, a web guiding system is fitted on slitting lines, rewinding lines, printing lines and lamination and coating lines wherever edge accuracy and roll quality matter. Flexible-packaging converters, BOPP and polyester film houses, aluminium foil processors and label printers rely on it to hold register and keep slit rolls saleable. To understand why this single component pays for itself so quickly, read our guide on why a web guiding system matters on a slitting machine. The guide works hand in hand with other winding hardware: it is commonly paired with precision air shafts for tension-true unwinding and quality industrial rubber rollers that carry the web, and it is a standard fitment on every slitting rewinding machine we build. As an ISO 9001:2015 certified manufacturer in Ahmedabad, Yogi Engineering Works supplies factory-direct at honest prices, with typical delivery in 4 to 6 weeks anywhere in India plus lifetime spares and service support. Pricing is indicative and depends on web width, sensor type and power-pack rating.

The price of a Web Guiding System in India depends on its configuration, size, capacity, speed and automation level. Yogi Engineering Works offers the Web Guiding System at factory-direct prices — no dealer markup, no middleman cost — with entry-level models for startups and small units, and heavy-duty industrial configurations for large plants.

For a free, no-obligation custom quotation within 24 hours, call or WhatsApp +91-8487884122. Every machine is factory-tested before dispatch, delivered pan-India in 4–6 weeks, and backed by on-site commissioning, operator training and lifetime spares support. We also export to UAE, Saudi Arabia, Bangladesh, Sri Lanka, Nepal, Kenya, Nigeria and Southeast Asia.
