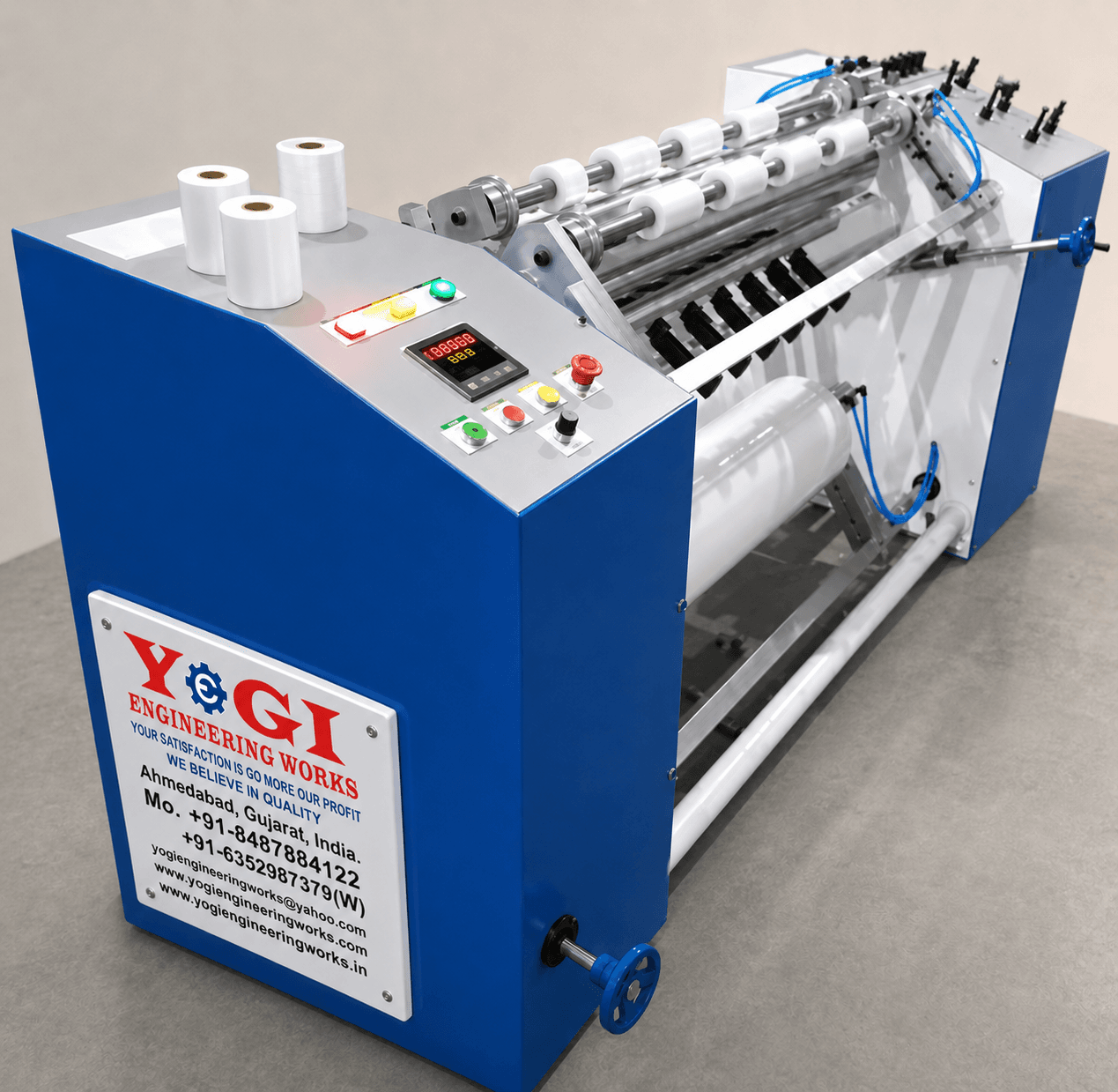

Stretch Film Slitting Rewinding Machine
Automatic stretch & cling film slitting rewinding machine — converts jumbo stretch film into hand & machine rolls. Up to 1000 mm, 5-cutter slitting, 80–100 MPM.
Factory-direct pricing, custom-built to your width, speed & material. Share your requirement for a quick quotation.
- Made in India
- Pan-India delivery in 4–6 weeks
- Lifetime spares support
- Machine StructureMS Plate Heavy Duty
- MaterialStretch Film & Cling Film
- Maximum Roll Width1000 mm Standard
- Jumbo Roll Capacity200 kg
- SlittingSlitting system with 5 cutters
- Unwinder Shaft1 Mechanical Shaft
About this machine
Yogi Engineering Works's Stretch Film Slitting Rewinding Machine converts jumbo stretch and cling film into finished hand rolls and machine rolls. Built on an MS plate heavy-duty structure with an automatic pneumatic design, it has a maximum roll width of 1000 mm and jumbo roll capacity of 200 kg. The line uses one drum roller, an aluminium guide roller and one nip rubber roller, a 3 HP AC motor with digital AC frequency drive (auto start/stop, length counting meter, speed sensor, emergency stop) and a slitting system with 5 cutters. One mechanical shaft feeds the unwinder jumbo roll and four mechanical shafts (25 mm × 2 and 76 mm × 2) handle the finished rewind rolls, driven by a heavy-duty chain drive. Rewinding speed is 80–100 MPM.
Full specifications
| Machine Structure | MS Plate Heavy Duty |
|---|---|
| Material | Stretch Film & Cling Film |
| Maximum Roll Width | 1000 mm Standard |
| Jumbo Roll Capacity | 200 kg |
| Slitting | Slitting system with 5 cutters |
| Unwinder Shaft | 1 Mechanical Shaft |
| Rewinder Shafts | 4 Mechanical (25 mm × 2, 76 mm × 2) |
| Motor | 3 HP AC |
| Control Panel | AC Digital Frequency Drive |
| Rewinding Speed | 80 – 100 MPM |
| Power Supply | Three Phase 415 V / 50 Hz |
Key features
- Automatic pneumatic design
- Slitting system with 5 cutters
- Drum, nip rubber & aluminium guide rollers
- 4-shaft rewinder for hand & machine rolls (25 mm / 76 mm cores)
- Heavy-duty chain drive system
- Length counting meter & speed sensor
