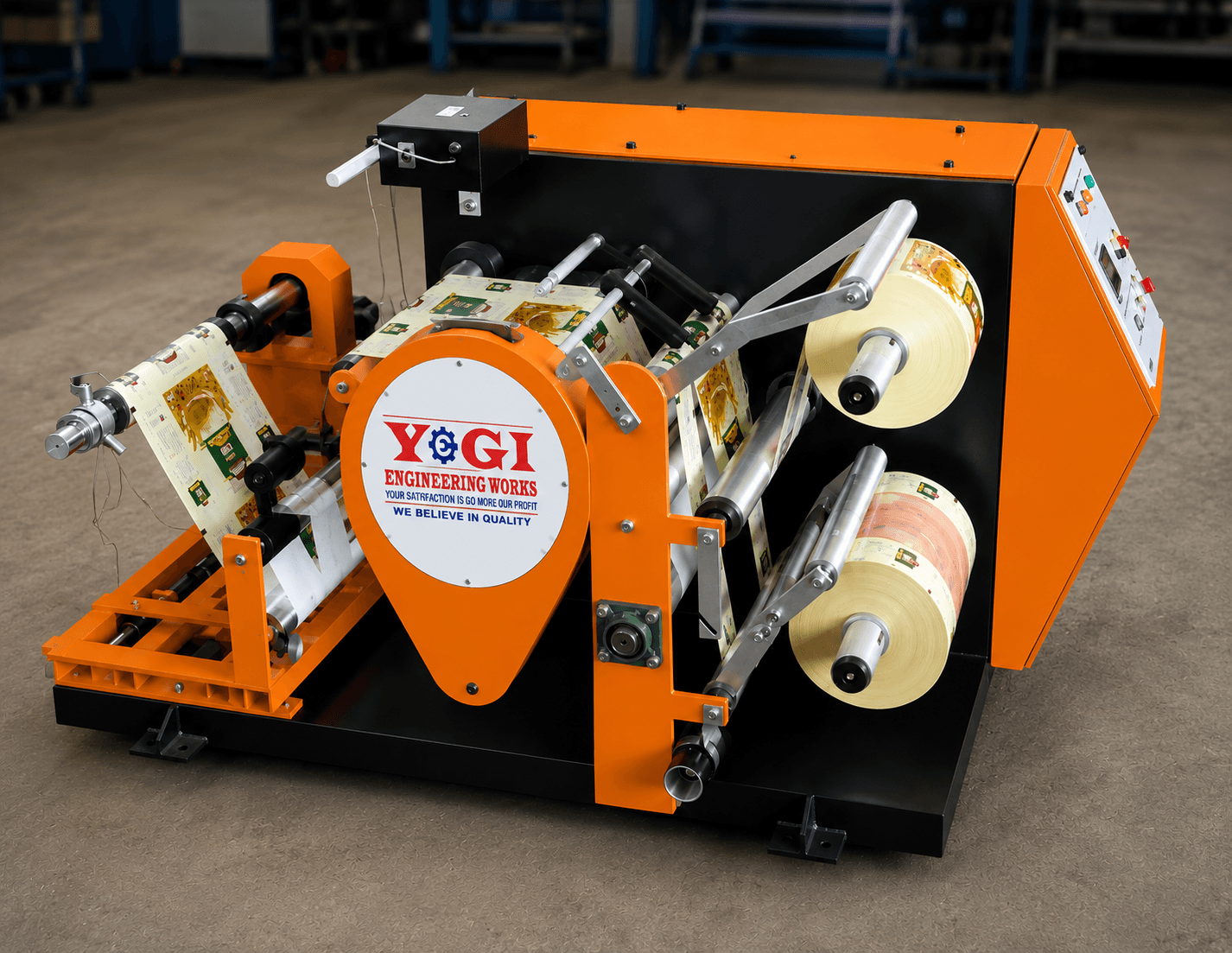

Doctoring Cum Slitting Machine: Why Combo Machines Save Floor Space & Cost

For small and mid-size packaging units in Gujarat and across India, floor space is money. Running a doctoring station and a slitting station as two separate machines means two footprints, two power connections, two sets of maintenance schedules — and often, two operators. A doctoring cum slitting rewinding machine collapses all of that into a single inline process, and the economics are difficult to argue with. By combining web inspection and multi-knife slitting on one frame, the combo machine lets you inspect a master roll, correct its faults, and cut it into finished-width rolls in a single pass.

What a Doctoring Cum Slitting Machine Combines

To understand the combo, you first have to understand the two jobs it merges. Doctoring is inspection winding — running a roll slowly under controlled tension to find and remove defects such as blocked sections, gels, pinholes, telescoping, and tension faults, then rewinding a clean, correctly tensioned roll. Slitting is cutting a wide master roll lengthways into narrower finished rolls using a bank of circular knives.

A doctoring cum slitting rewinding machine performs both on one inline frame. The web unwinds, passes the inspection zone where the operator watches for flaws, runs through a slitting section typically fitted with around five cutters, and rewinds onto multiple cores at finished width. The machine handles a working width of roughly 400–1000 mm and runs the usual converter material mix — LD and HM film, PP, printed and laminated pouch stock, and foil.

Crucially, the same encoder-feedback drive that holds steady tension for clean inspection also holds tension across the slit webs so each finished roll winds firm and square. You get the quality benefit of doctoring and the productivity benefit of slitting without the film ever leaving the line — one mounting, one tension cycle, one operator decision point.

The Floor-Space Argument: Around 40% Less

The most immediate saving is physical. Two standalone machines — a doctoring rewinder and a separate slitting rewinding machine — each need their own footprint plus operator access on all working sides, plus space to stage incoming rolls at one and collect finished rolls at the other. In a typical GIDC shed in Ahmedabad or Rajkot, that easily consumes the floor area of two machine bays.

A combined unit removes one full set of unwind and frame structure. In most layouts the inline machine occupies roughly 40% less floor area than the two separate machines it replaces, once you account for the access aisles each standalone unit demands. That recovered space is not abstract — at GIDC built-up shed rents and the cost of constructing additional covered area, every square metre carries a real monthly value. Freed space can hold raw-material inventory, a packing bench, or simply give your existing machines safer working clearance.

There is a material-handling saving too. With two machines, an operator or helper physically carries each inspected roll from the doctoring station and re-mounts it on the slitter — handling that risks edge damage and telescoping on the very roll you just cleaned up. The combo eliminates that transfer entirely.

Consider what that footprint difference means in money over time. Built-up factory space on a GIDC estate in Ahmedabad, Sanand, or Rajkot carries a real per-square-foot cost whether you rent or amortise your own construction. A second machine bay that you do not have to build, plus its access aisle and roll-staging area, is space you either save on rent or repurpose for inventory and packing. Over the life of the machine that recovered area can be worth as much as a meaningful slice of the capital you spend on the line itself — a saving that never shows up on the machine invoice but shows up every month on your overhead.

Capital Saving: ₹3–6 Lakh Versus Two Machines

Buying one machine instead of two saves real capital. You pay for a single main frame, one unwind assembly, one drive and control package, and one installation and commissioning exercise rather than two. In the Indian market, choosing a doctoring cum slitting rewinding machine over a separate doctoring rewinder plus a standalone slitter typically saves on the order of ₹3–6 lakh in upfront capital, depending on width, knife count, and specification.

• One control system: A single PLC/drive panel with encoder feedback instead of two, cutting electrical and panel cost.
• One installation: A single foundation, power connection, and commissioning visit rather than two.
• Lower running overhead: One machine to maintain, one spares inventory, one annual service schedule.
• Reduced labour: A single-operator workflow rather than staffing two stations.

For an MSME funding the purchase through an Udyam-registered term loan or CGTMSE-backed credit, a lower machine ticket also means a smaller EMI and a faster payback. The capital you do not spend on a second machine can fund working capital for raw rolls instead — often the tighter constraint for a young converting unit.

The Single-Operator Workflow

Labour is the saving converters feel every single shift. On two separate machines, one operator inspects on the doctoring rewinder while another sets up and runs the slitter — or one person shuttles between both, leaving one machine idle while attending the other. Either way you are paying for handling that adds no value.

With a combined machine, a single trained operator mounts the master roll, threads the web once, and runs inspection and slitting as one continuous operation. The operator watches the inspection zone, slows or stops the line to splice out a defect when needed, and the same pass delivers slit, finished-width rolls at the rewind. Encoder feedback keeps tension steady throughout, so the operator is supervising quality rather than constantly correcting tension by hand.

What this means in practice

• One set of hands instead of two, freeing a worker for packing, core loading, or dispatch.
• No inter-machine roll transfer, so less risk of edge crush or telescoping between steps.
• A single quality decision point — defects are caught and removed before slitting, so you never slit bad film into multiple bad rolls.

That last point is subtle but important: slitting a defect just multiplies it across every narrow roll it lands in. Inspecting first, on the same machine, means the cut is always made on verified-good film.

The freed worker is a real gain, not a notional one. In a small unit the person who would otherwise be shuttling rolls between a doctoring station and a slitter can instead load cores, pack finished rolls, or handle dispatch — the very tasks that usually become the bottleneck once the machine itself is running smoothly. Over a month, redeploying one set of hands from non-value handling to packing and despatch can lift the unit's effective throughput without adding any headcount. For owner-operated SMEs where every salary counts, the single-operator workflow is frequently the saving that makes the combined machine pay for itself fastest.

When a Combo Is Right — and When It Isn't

A combined machine is not automatically the right answer for every plant. It is an excellent fit when your inspection and slitting volumes are roughly balanced — that is, most rolls you inspect also need slitting to width. It suits SMEs with limited floor space, a single shift or modest two-shift operation, and a product mix where doctoring and slitting naturally happen back to back.

Separate machines make more sense in a few situations:

• High, unbalanced volumes: If you inspect far more material than you slit (or vice versa), one combined machine becomes a bottleneck for the busier task. Two dedicated machines can run in parallel.
• Continuous high-speed slitting: A plant slitting large tonnages at full speed all day may want a dedicated high-output slitting rewinding machine kept running, with a separate doctoring winder rewinder machine handling only flagged or incoming rolls.
• Different teams or shifts: If inspection and slitting are run by different teams on different schedules, separating them avoids contention for one machine.

The honest test is your roll flow: if nearly every roll goes inspect-then-slit, combine; if the two tasks have very different throughput, keep them apart.

Throughput Trade-Offs to Plan For

The one genuine compromise of a combo is throughput. Because inspection and slitting share a single line, the machine can only do one thing at a time on a given roll — you cannot inspect roll B while roll A is being slit. On two separate machines, those tasks overlap. So a combined unit's total daily output across both functions is generally lower than two dedicated machines running flat out in parallel.

For most SMEs this is a non-issue, because their volumes never saturate a single machine and the inspection-then-slit sequence is exactly how their work flows anyway. The combo's lower capital cost, smaller footprint, and single-operator economics outweigh a throughput ceiling they will not hit. The trade-off only bites at high volume — which is precisely when the calculation flips toward separate machines. The practical way to decide is to estimate your monthly tonnage and your roll mix honestly: model a realistic shift on the combined machine and see whether it comfortably clears your order book with headroom to grow. If it does, the combo is the cheaper, tidier, more labour-efficient choice. If it is already tight on day one, plan for separate machines or a higher-output line so you are not capacity-constrained within a year.

It also helps to identify where the slow step really sits in your jobs. If inspection is the bottleneck — you handle a lot of suspect or supplier-second material needing careful checking and frequent splicing — then slitting on the same frame adds very little extra time, because the web is already crawling. If your material is mostly clean and high-speed slitting is the limiting step, the combined machine forces every slit to wait behind an inspection pass it may not even need. Mapping your actual job mix this way, rather than relying on a generic rule of thumb, is the most reliable way to know whether the throughput ceiling will ever bind on your floor — and it is exactly the kind of analysis worth doing before, not after, you commit the capital.

Frequently Asked Questions

Can a doctoring cum slitting machine handle both film and foil?

Yes, within its rated range. A well-built combo machine handles LD and HM polyethylene, PP, printed and laminated pouch stock, and aluminium foil across roughly 400–1000 mm working width. The key is the tension system: confirm the machine's closed-loop, encoder-fed control is tuned for your thinnest film or foil, not just mid-gauge material, because thin webs are the ones that tear or telescope when tension is coarse.

How many knives can the slitting section take?

A typical configuration runs around five cutters, letting you slit a master roll into several finished-width rolls in one pass. The practical number depends on your narrowest finished width and the master width; the engineering team will confirm the knife arrangement and minimum slit width for your specific roll sizes.

Will a combined machine slow my production?

Only if your volumes are high enough to saturate a single line. Because inspection and slitting share one frame, you cannot inspect one roll while slitting another — so total output is lower than two dedicated machines running in parallel. For most SMEs whose work flows inspect-then-slit anyway, this ceiling is never reached and the capital and floor-space savings dominate.

Is a combo machine harder to maintain?

No — in fact it is simpler overall. You maintain one frame, one drive and control panel, one set of bearings and rollers, and a single spares inventory instead of two. That is part of why the running overhead is lower than operating a separate doctoring rewinder and slitter.
