Types of Industrial Rollers Explained: How to Choose the Right Roller for Your Machine

A wrong roller choice costs more than just downtime — it leads to web breaks, surface contamination, uneven tension, and product rejection that quietly erodes margins on every production shift. Whether you are setting up a new packaging line or replacing worn-out components, selecting the correct industrial roller is one of the most critical decisions a machine buyer or maintenance engineer will make. This guide breaks down every major roller type and rubber compound so you can match the right roller to your application without guesswork.

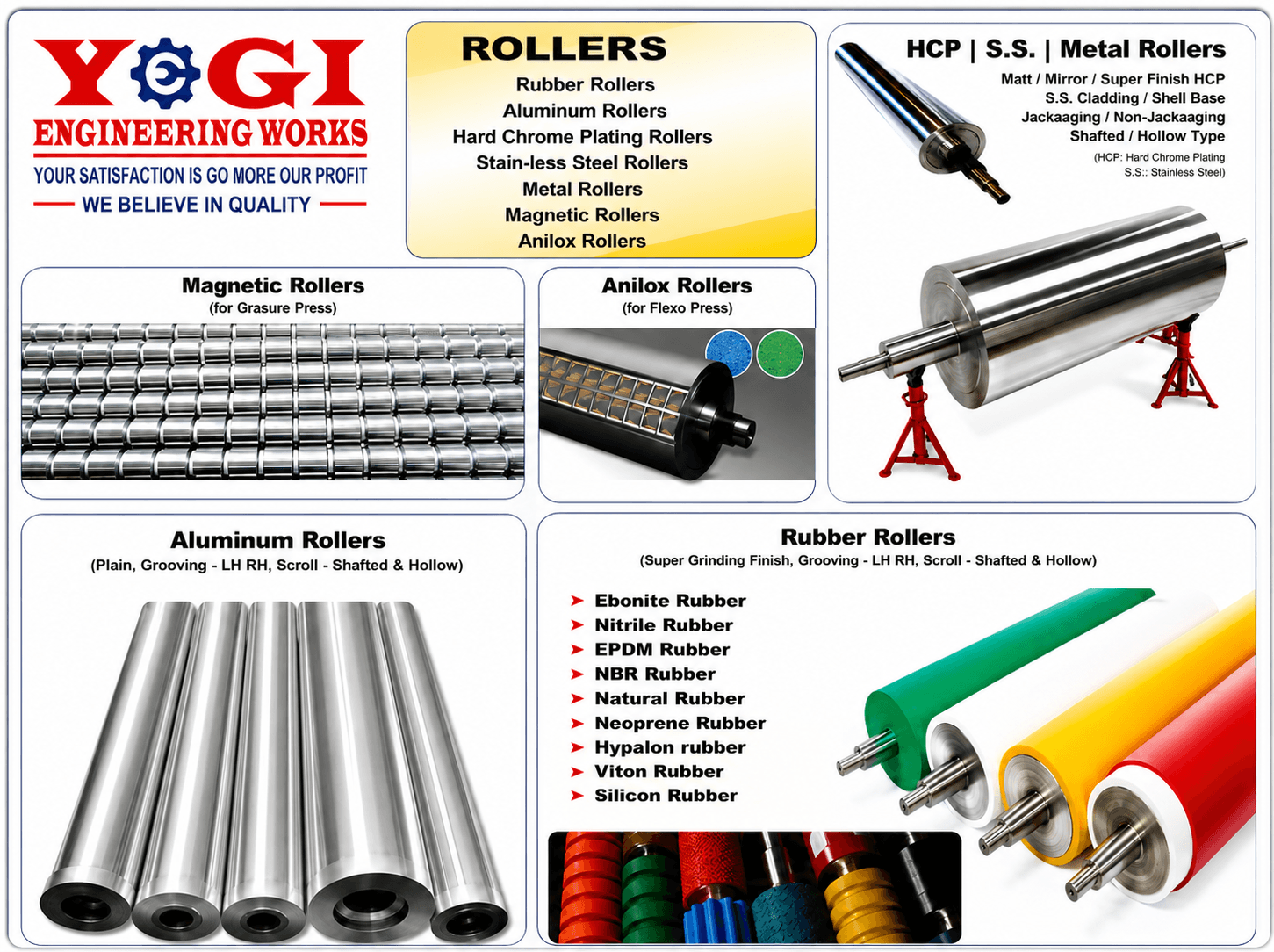

The Main Types of Industrial Roller and What Each Does

Before choosing a compound or hardness, you need to identify the job the roller does. Yogi Engineering Works manufactures the full range, in diameters from roughly 15 mm up to 110 mm, and each type exists to solve a specific problem on the web path.

• Rubber-covered rollers: The general-purpose workhorse — a steel or aluminium core covered in a chosen rubber compound. Used for nip, pull, pinch, and pressure duties across printing, coating, slitting, and lamination.
• Banana / bow-expander rollers: Curved (bowed) rollers that spread the web outward from the centre to remove wrinkles and creases before the web is printed, coated, or wound. Indispensable on thin film lines.
• Aluminium guide / idler rollers: Lightweight, low-inertia rollers that simply guide and support the web with minimal drag. Their light weight lets them start and stop quickly without marking the web.
• Drum rollers: Large-diameter rollers used for surface winding, where the roll is driven by contact with the drum rather than from the core.
• Knurling rollers: Patterned rollers that emboss a fine texture, often used to trap air and control winding on films.
• Magnetic rollers: Hold flexible cutting dies in place for rotary die-cutting of labels and similar work.
• Anilox rollers: Precision-engraved metering rollers that carry a controlled volume of ink to the plate in flexo printing.

Identifying the right type is step one. Step two — for any rubber-covered roller — is choosing the compound, and that is where most costly mistakes happen.

It is worth understanding the two metering rollers in more detail, because they are the most precision-critical in the list. The anilox roller carries thousands of tiny engraved cells per inch, and the cell volume — measured in BCM, billion cubic microns per square inch — fixes exactly how much ink reaches the plate. Choose the wrong anilox specification and your flexo print is either starved or flooded, no matter how good the rest of the line is. The magnetic roller, meanwhile, must hold its flexible die perfectly flat and concentric so the cut depth stays consistent right across a label web. Both reward precise manufacture and dynamic balancing far more than a simple idler does, which is why they should never be treated as interchangeable commodity parts.

Choosing the Right Rubber Compound

The rubber compound determines how the roller survives its working environment — the oils, solvents, heat, and ozone it faces every shift. Picking a compound that cannot resist its environment leads to swelling, cracking, hardening, and premature failure. Here are the compounds Yogi manufactures and where each belongs.

Nitrile (NBR)

Excellent resistance to oils, fuels, and greases. The default choice for ink and adhesive contact in printing and coating, and anywhere mineral oils are present.

EPDM

Outstanding resistance to ozone, weather, steam, and water-based chemicals — but poor with mineral oils. Ideal for water-based coating, steam, and outdoor or wet environments.

Neoprene

A balanced all-rounder with good resistance to oil, ozone, and moderate heat. A dependable general-purpose nip and pull roller cover.

Hypalon

Strong resistance to aggressive chemicals, acids, and ozone. Used in harsh chemical-coating environments.

Viton

The premium choice for high heat and aggressive solvents and chemicals, holding up where other rubbers degrade. Used in demanding coating and high-temperature applications.

Silicone

Excellent at high temperatures, non-stick, and release-friendly. The go-to for heat-set, lamination, and release applications.

Natural rubber

High resilience, grip, and abrasion resistance at low cost — but poor oil and ozone resistance. Good for general pull and pinch rollers in clean, oil-free conditions.

Ebonite / hard rubber

A very hard, rigid cover for high-pressure nip and precision applications where minimal deflection is required.

Compound to property to application at a glance

Use this table as a quick reference when matching a cover to your line. When in doubt, our engineers will confirm the choice against your exact chemistry and temperature.

Compound	Key property	Best-fit application
Nitrile (NBR)	Oil and grease resistance	Printing ink and adhesive contact, oily environments
EPDM	Ozone, steam, water-chemical resistance	Water-based coating, steam, wet/outdoor lines
Neoprene	Balanced oil, ozone and heat	General-purpose nip and pull rollers
Hypalon	Acid and aggressive-chemical resistance	Harsh chemical coating
Viton	High heat and solvent resistance	High-temperature, solvent-heavy coating
Silicone	High heat, non-stick release	Lamination, heat-set, release rollers
Natural rubber	Grip and abrasion, low cost	Pull/pinch in clean, oil-free duty
Ebonite / hard	Rigidity, minimal deflection	High-pressure precision nips

Shore A Hardness — Getting the Grip Right

After the compound, hardness is the next variable, measured on the Shore A scale. It is selected — not fixed — so the roller behaves correctly in its nip. Too soft and the cover deforms, generates heat, and wears fast; too hard and it grips poorly and can mark delicate webs.

• Soft, around 20–40 Shore A: Conforms to the web, spreads nip pressure gently, and grips delicate or uneven substrates. Used for lamination and gentle pull duties.
• Medium, around 45–65 Shore A: The most common range for general nip, pull, and coating rollers — a balance of grip and durability.
• Hard, around 70–90 Shore A: Holds shape under high pressure with minimal deflection, suited to precision nips and pressure-sensitive metering.
• Very hard / ebonite, 90+ Shore A: Near-rigid, for the highest-pressure precision work.

The correct hardness depends on web thickness, line pressure, and how delicate the material is. A thin BOPP film needs a softer, kinder cover than a heavy paper board nip. Specifying compound and Shore A together — rather than ordering a generic cover — is what separates a roller that lasts years from one that fails in months. Every industrial rubber roller we supply is built to a chosen compound and hardness for the job.

Bonding, Balancing and Build Quality

Even the right compound at the right hardness fails early if the rubber roller is poorly built. Two engineering details matter enormously.

Rubber-to-metal bonding

The rubber cover must be chemically bonded to the metal core so it cannot separate, slip, or peel under shear and heat. Proper surface preparation, bonding agents, and curing are what keep the cover anchored at speed. A cover that de-bonds destroys the roller and can damage the web and machine — so bonding quality is non-negotiable.

Dynamic balancing

At higher line speeds, any imbalance in the rubber roller sets up vibration. Vibration causes bounce in the nip, banding in print and coating, bearing wear, and web instability. Dynamically balancing the finished rubber roller — spinning it and correcting weight distribution — ensures it runs true and quiet at operating speed. For any roller running at meaningful speed, dynamic balancing is essential, not optional.

Core, diameter and finish

The steel or aluminium core must be straight and true, the diameter chosen to suit the web path (our range spans roughly 15–110 mm), and the ground surface finish matched to the application — smooth for film, textured or knurled where grip or air-release is needed. These details decide whether the web tracks cleanly and the finished product meets spec.

Concentricity, TIR and wall thickness

Two more numbers separate a precision roller from a rough one. Concentricity, often expressed as total indicated runout (TIR), measures how much the cover surface deviates from true round as the roller turns; on print and coating rollers a low TIR is essential to avoid banding. Cover wall thickness must also be uniform end to end — an uneven cover compresses differently across the nip and produces variable pressure, which shows up as streaks in coating or print. Reputable manufacturers grind the finished cover on the same bearing centres the roller will run on, so the surface is true to its actual axis of rotation rather than just nominally round.

Crowning for nip rollers

For wide nip rollers, a deliberate crown — a very slight increase in diameter at the centre — compensates for the natural deflection of the roller under nip load. Without it, a long roller bows in the middle and the nip pressure drops off at the centre, leaving the web under-gripped exactly where you need it most. Crowning is a calculated correction based on roller length, load, and cover hardness, and getting it right is part of building a roller that performs across its full face.

Which Roller for Printing, Coating, Slitting and Lamination

Bringing it together, here is how the choices map onto the four most common converting processes in Indian plants.

Printing

Flexo lines rely on precision anilox rollers to meter ink and nitrile-covered impression and pull rollers that resist ink solvents. Aluminium idlers guide the web with low inertia, and a well-balanced roller set keeps print registration tight. A clean web edge here also helps any downstream web guiding system read and track accurately.

Coating

Coating demands compound choice matched to the chemistry — nitrile for oil-based, EPDM for water-based, Viton or Hypalon for aggressive solvent and chemical systems — with medium-hard covers for accurate, even film weight.

Slitting

Slitting lines need accurate idler and pull rollers plus banana/bow-expander rollers to keep the web flat and wrinkle-free into the knives. Good rollers feed the slitter a stable web, and they pair naturally with the guides and shafts on a slitting line.

Lamination

Lamination uses silicone-covered rollers for heat and release and soft covers that apply gentle, even nip pressure so layers bond without trapped air. Across all four processes, the same principle holds: choose the type, then the compound, then the hardness — and insist on proper bonding and balancing.

Maintenance, Re-Covering and Total Cost of Ownership

A roller is not a fit-and-forget part. The economics over its life depend as much on upkeep as on the original specification, and a little discipline here protects both quality and budget.

• Inspect for wear and chemical attack. Watch for surface glazing, cracking, swelling, or loss of grip. Swelling almost always means the compound is wrong for the chemistry — a signal to switch, say, natural rubber for nitrile rather than just replacing like with like.
• Keep covers clean. Dried ink, adhesive, and coating residue change the effective hardness and surface of the roller, degrading print and coating quality long before the rubber itself wears out. Use the cleaning solvents recommended for that compound.
• Re-cover instead of replacing. When a cover wears, the steel or aluminium core is usually still perfectly good. Re-covering strips the old rubber, re-bonds a fresh cover in your chosen compound and hardness, re-grinds it true, and re-balances it — typically at a fraction of the cost of a new roller and with a much shorter lead time.

Thinking in total cost of ownership rather than purchase price changes the decision. A correctly specified roller that lasts three years and is then re-covered twice is far cheaper per running hour than a bargain roller that swells, marks the web, and fails in six months. For Indian SMEs running tight margins, that long-view discipline on a humble component quietly protects profitability shift after shift.

Why Yogi Engineering Works

Yogi Engineering Works is an Ahmedabad, Gujarat based, ISO 9001:2015 certified manufacturer of the complete industrial roller range — rubber-covered (nitrile, EPDM, neoprene, Hypalon, Viton, silicone, natural, and ebonite), banana/bow-expander, aluminium guide and idler, drum, knurling, magnetic, and anilox rollers — in diameters from roughly 15 mm to 110 mm and any selectable Shore A hardness. Every roller is built with proper rubber-to-metal bonding and dynamic balancing for true, quiet running at production speed.

We manufacture each industrial roller to your machine, web, and chemistry — not from a generic shelf — and supply at factory-direct pricing with on-site fitment support, technical guidance on compound and hardness selection, and lifetime spares support. Our rollers and machines run across India and are exported to the UAE, Saudi Arabia, Bangladesh, Sri Lanka, Kenya, and South-East Asia. To specify the right roller for your line, message us on WhatsApp at +91-8487884122.

Frequently Asked Questions

Which rubber compound is best for printing rollers?

Nitrile (NBR) is the usual choice because it resists the oils and solvents in printing inks. The final pick depends on your specific ink system, which we can confirm.

What Shore A hardness should I choose?

Softer covers (20–40 Shore A) suit delicate films and lamination; medium (45–65) covers most general nip and coating duty; hard covers (70–90+) suit high-pressure precision nips. It depends on web thickness and nip pressure.

Why does dynamic balancing matter?

An unbalanced roller vibrates at speed, causing print banding, bearing wear, and web instability. Dynamic balancing makes the roller run true and quiet, protecting both quality and machine life.

Can you re-cover my existing rollers?

Yes. We re-cover worn cores in your chosen compound and hardness, restore proper rubber-to-metal bonding, and re-balance the finished roller. Reach us on WhatsApp to arrange it.
