Paper Core Manufacturing: How Paper Cores Are Made & Which Machine You Need

Paper cores—the rigid cardboard tubes at the centre of every roll of BOPP tape, masking tape, stretch film, and paper—are a high-volume consumable that every tape manufacturer needs in consistent supply. For Indian SMEs looking to reduce input costs or bring core production in-house, understanding the full manufacturing process is the first step toward a profitable, low-investment line. A paper core cutter machine sits at the heart of that process.

Why the Humble Paper Core Matters

It is easy to dismiss the paper core as a trivial part of a finished roll, but in a converting business it is anything but. Every BOPP tape log, every reel of thermal paper, every roll of stretch film is wound onto a core, and the core's dimensions and quality directly affect winding accuracy, roll stability, and how cleanly the end user can mount the roll on their dispenser or machine. A core that is out of round, cut unevenly, or made from poor-grade paper telescopes the roll, jams automatic applicators, and generates customer complaints.

Cores are also a relentless cost. A tape unit producing dozens of boxes a day consumes thousands of cores a month, and most small manufacturers buy them in from core makers, paying both the conversion margin and the freight on what is essentially bulky air. Because cores are light but voluminous, inbound logistics is disproportionately expensive — you are paying to transport empty tubes across the state.

This combination of high volume, quality sensitivity, and awkward logistics is exactly why bringing core sizing in-house is attractive. The investment is modest, the process is simple to operate, and the savings recur on every single roll you produce. Understanding how cores are actually made is the foundation for deciding which part of the process makes sense to control yourself.

How Paper Cores Are Made: Two Winding Methods

A paper core is built by winding multiple plies of paper into a tube, bonded with adhesive, and then cutting that long tube to the required length. There are two distinct ways the tube itself is formed, and the difference matters for strength and application.

Spiral winding

Spiral (or helical) winding is the dominant method for tape, film, and paper cores. Narrow ribbons of paper are fed at an angle onto a fixed cylindrical mandrel and wound around it in overlapping spirals, with each ply offset so the seams never line up. A belt assembly rotates and advances the forming tube continuously down the mandrel, producing an effectively endless tube that is cut on the fly. Because the seams are staggered across layers, spiral-wound cores are strong in both radial crush and axial compression, which is why they handle the winding tension of high-speed slitting lines well.

Parallel (convolute) winding

In parallel or convolute winding, a single wide sheet of paper is wrapped around a mandrel so the plies lie straight along the tube axis, one on top of the next, like rolling a poster. This produces a tube with very high axial (column) strength and a smooth bore, favoured where the core must resist end-loading or carry heavy reels. Convolute cores are typically made in discrete lengths rather than as a continuous tube.

In both cases the raw material is the same family: multiple plies of kraft paper bonded with an adhesive. The forming method and number of plies determine wall thickness and strength.

Raw Materials: Kraft Paper and Adhesive

The performance of a finished core is decided mostly by the paper and the bond, so it pays to understand the inputs. The structural plies are made from core-grade kraft paper, a high-stiffness, high-tensile recycled or virgin kraft typically in the 150–400 GSM range. Heavier, stiffer paper gives a stronger core for a given wall thickness, but costs more — most tape and film cores use a balanced mid-weight kraft to keep cost sensible while meeting crush-strength needs.

The plies are bonded with a water-based adhesive, usually a starch-based or PVA (white) glue, applied to each ply as it feeds onto the mandrel. The adhesive does the structural work: a well-bonded core behaves like a single solid wall, whereas a poorly glued one delaminates under tension and collapses. Glue quantity and even application are common quality variables in small core operations.

Key raw-material considerations

• Paper GSM and grade: drives crush strength and stiffness; match to the weight of roll the core must carry.
• Number of plies / wall thickness: more plies mean a thicker, stronger wall and a higher material cost per core.
• Adhesive type and coverage: determines delamination resistance and how well the core holds its shape under winding tension.
• Moisture control: cores are dried after forming; residual moisture weakens the bond and causes the core to soften.

For an in-house operation, sourcing consistent core-grade kraft from reliable mills in Gujarat or nearby states is the single biggest factor in finished-core quality.

From Tube to Finished Core: Where the Cutter Comes In

This is the distinction every prospective buyer must be clear about: the spiral winder makes the tube; the cutter sizes it. These are two separate machines doing two separate jobs, and confusing them leads to buying the wrong equipment.

The spiral (or convolute) winding machine produces a long paper tube of a fixed inside diameter — say a continuous 3-inch (76 mm) tube several metres long, or stacks of long tubes. That tube is the raw stock. It is not yet usable because tape and film rolls need cores of a precise, repeatable length: a 48 mm tape roll needs a core cut to the log width, a stretch-film roll needs a longer core, and so on.

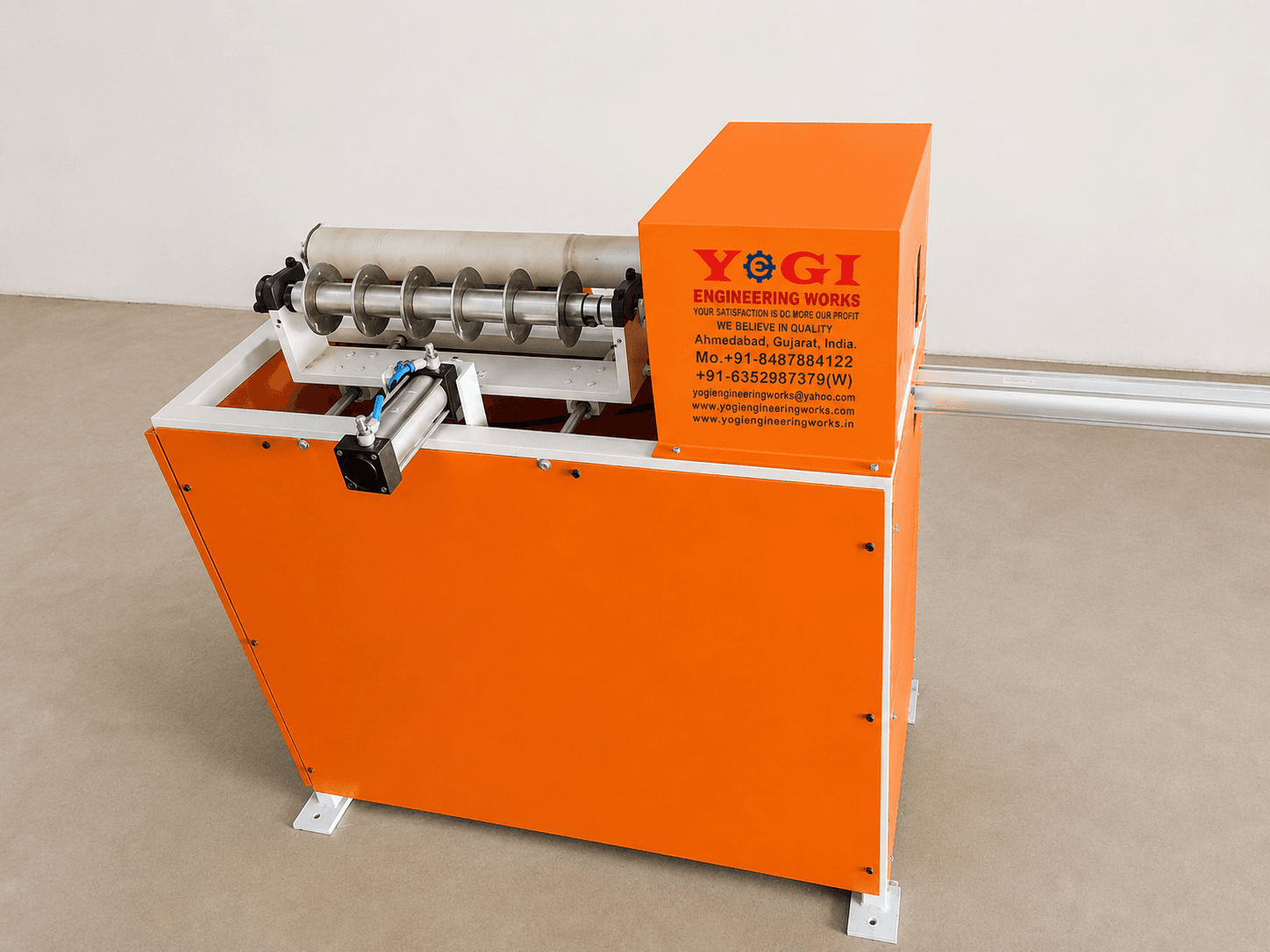

The paper core cutter machine takes those pre-made tubes and cuts them cleanly to the exact lengths your products require. Circular blades slice through the rotating tube at set spacings, producing a batch of identical, square-cut cores in one pass. The cut quality matters: a ragged or angled cut leaves the roll edge uneven and can cause the finished tape log to wind off-square.

So the honest, practical picture is this: if you want to manufacture cores entirely from kraft paper, you need both a winder and a cutter. If you (or many Indian SMEs) buy ready-made long tubes from a core-maker and only need to size them to your product widths, a cutter alone does the job — and that is by far the more common, lower-investment route for tape and film units.

Core Specifications for Tape, Film and Paper

Different end products demand different core specs, and getting these right is what separates a usable core from a reject. The three variables that matter are inside diameter (ID), wall thickness, and length.

Inside diameter (ID)

ID is fixed by the application and the shaft it will mount on. The two universal sizes in Indian converting are 76 mm (3-inch) and 152 mm (6-inch). The 3-inch core is the workhorse for BOPP packing tape, masking tape, stretch film, and most narrow rolls. The 6-inch core appears on larger jumbo reels, wide paper, and heavier film logs. (A smaller 2-inch core is also common on retail packing tape, but 3-inch and 6-inch dominate machine-wound rolls.)

Wall thickness

Wall thickness sets crush strength. A lightweight tape roll can sit on a thin-walled core, but a heavy 6-inch film jumbo needs a thick, multi-ply wall to resist the inward crush of winding tension and the weight of the reel during storage and transport. Under-specifying wall thickness is a frequent cause of collapsed cores and telescoped rolls.

Length

• BOPP / masking tape: cores are cut narrow to match the finished tape width — commonly 12, 24, 48 or 72 mm, the typical slit widths off a tape line.
• Stretch and packaging film: longer cores matching the roll face width, often 250–500 mm.
• Paper and thermal rolls: sized to the slit-roll width, from narrow POS rolls to wide reels.

A good cutter must therefore handle a wide range of cut widths accurately and repeatably, because your product mix will demand many different lengths from the same stock tubes.

Why In-House Core Cutting Saves Money

The financial case for bringing core cutting in-house rests on three recurring savings, and it is strong for any unit consuming cores in volume. First is the conversion margin: when you buy finished, cut-to-size cores, you pay the core-maker's profit on every piece. Buying long tubes in bulk and cutting them yourself captures that margin. Second is freight: cores are bulky and light, so transporting finished cores means paying to move a lot of empty volume; buying tubes (or making them) and cutting on demand cuts that logistics waste sharply.

Third, and often underrated, is flexibility and inventory control. When you cut your own cores, you produce exactly the lengths today's job needs, when it needs them, instead of holding stock of dozens of pre-cut sizes or waiting on a supplier's delivery during a rush order. For a tape unit running multiple slit widths, this responsiveness alone prevents costly line stoppages.

The investment to capture these savings is modest. A paper core cutter is a relatively simple, low-power machine with a small footprint, well within reach of an MSME budget, and because the savings recur on every core, payback is typically quick for a unit with steady volume. For converters already running a BOPP tape slitting and rewinding machine or a masking tape rewinding machine, adding a cutter is a natural, high-return step that tightens control over a key consumable and removes dependence on outside core suppliers.

Choosing the Right Paper Core Cutter Machine

Cutters range from simple manual units to fully automatic PLC-controlled machines, and the right choice depends on your volume and how varied your cut lengths are. Match the machine to your real production rather than over-buying automation you cannot keep fed.

Operating modes

• Foot-operated: the operator positions the tube and actuates the cut by a foot pedal. Lowest cost, ideal for low volume or occasional cutting.
• Hand-operated: manual lever cutting, simple and rugged for small units.
• Pneumatic: a cylinder drives the cut for faster, more consistent operation at medium volume — the practical choice for most growing tape units.
• PLC automatic: programmable length and blade control for high volume and frequent length changes, giving the fastest, most repeatable output.

Key specifications to confirm

• Cut width range: a versatile cutter handles roughly 4–30 mm and upward, covering narrow tape cores through wider film cores.
• Core ID compatibility: ensure it accepts your sizes — commonly 76 mm (3-inch) and 152 mm (6-inch) bores.
• Number of blades: machines with 4 to 10 circular blades cut multiple cores per pass; more blades mean higher throughput per cycle.
• Blade quality and adjustability: hardened, easily spaced blades give square, clean cuts and longer service life.

As a rule, a small unit cutting a limited range of sizes is well served by a foot or pneumatic machine, while a high-volume converter juggling many lengths benefits from a multi-blade PLC automatic cutter. Specify the blade count and width range against your actual product mix, and you will buy a machine that pays back rather than one that sits underused.

Why Yogi Engineering Works

Yogi Engineering Works, based in Ahmedabad, Gujarat, manufactures paper core cutter machines across the full range — foot, hand, pneumatic, and PLC automatic — with configurable cut widths from around 4–30 mm, support for 76 mm and 152 mm core IDs, and 4 to 10 blade options to match your throughput. As an ISO 9001:2015 certified manufacturer exporting to the UAE, Saudi Arabia, Bangladesh, Sri Lanka, Kenya, and South-East Asia, we build cutters that hold tolerance shift after shift. Our engineers will help you choose between manual and automatic configurations based on your real volume and product mix, so you invest in exactly the capacity you need. Every machine ships with factory-direct pricing, on-site installation, operator training, and lifetime spares support. To bring core cutting in-house and stop paying conversion margin and freight on a consumable you use every day, reach us on WhatsApp at +91-8487884122.
