Why Every Slitting Machine Needs a Web Guiding System — Defects, Solutions & ROI

On a busy slitting line, even a 2–3 mm lateral drift in the material web can render an entire roll unusable — generating scrap, delaying delivery, and silently eroding margins. For small and mid-sized packaging converters in Gujarat and across India, that invisible drift is one of the most expensive problems no one openly accounts for in their production costs.

What Web Drift Actually Is — and Why It Happens

Web drift, also called web wander or lateral deviation, is the tendency of a moving film, paper, or foil web to shift sideways from its intended path as it travels from the unwind stand through the slitting knives to the rewind shafts. The web is supposed to follow a perfectly straight line down the centre of the machine. In practice it constantly nudges left and right, and on a high-speed line running 200–400 metres per minute, those small nudges add up fast.

The causes are rarely a single fault. In most Indian converting units we see a combination of the following:

• Out-of-round or telescoped parent rolls arriving from the film or paper supplier, which feed the web in unevenly from the very first metre.
• Misaligned or worn idler rollers that are no longer parallel, steering the web off-course like a misaligned car pulling to one side.
• Uneven web tension across the width, often from a baggy or wavy substrate, especially thin LDPE and BOPP films below 20 microns.
• Temperature and humidity swings on the shop floor, which change film dimensions through the day — a very real factor in Gujarat's climate.
• Variation in core mounting and chuck alignment on the unwind shaft.

You cannot eliminate every one of these mechanical and material causes. What you can do is correct the resulting drift in real time, automatically, before it ever reaches the slitting section. That is precisely the job of a web guiding system.

The Defects Web Drift Causes on a Slitting Line

When the web wanders, the damage shows up in several distinct and costly ways. Understanding each helps you see why drift control is not a luxury accessory but a core quality requirement.

Telescoping and dished rolls

If the web shifts sideways during rewinding, each wrap lands slightly off the previous one. The finished roll slides outward like an extended telescope or dishes inward. Telescoped rolls cannot be loaded cleanly into a customer's printing or packaging machine and are frequently rejected outright.

Misaligned and out-of-spec slit widths

Slitting knives are set at fixed positions. If the web drifts under them, the cut no longer lands where it should — a 50 mm tape slit becomes 48 mm on one edge and 52 mm on the other across the roll. For BOPP tape and label stock sold on tight width tolerances, this is an instant reject.

Wrinkles, creases and edge weave

A wandering web bunches against guide rollers and forms wrinkles that get wound permanently into the roll. Wrinkled film prints badly downstream and fails on automatic packaging lines.

Material waste of around 3 percent

Add it together — edge trim losses, rejected rolls, and re-runs — and an uncorrected line typically wastes around 3 percent of throughput. On a unit converting 100 tonnes of film a year at ₹150 per kg, that is roughly ₹4.5 lakh of substrate thrown away annually, before counting the lost machine hours.

How a Web Guiding System Works

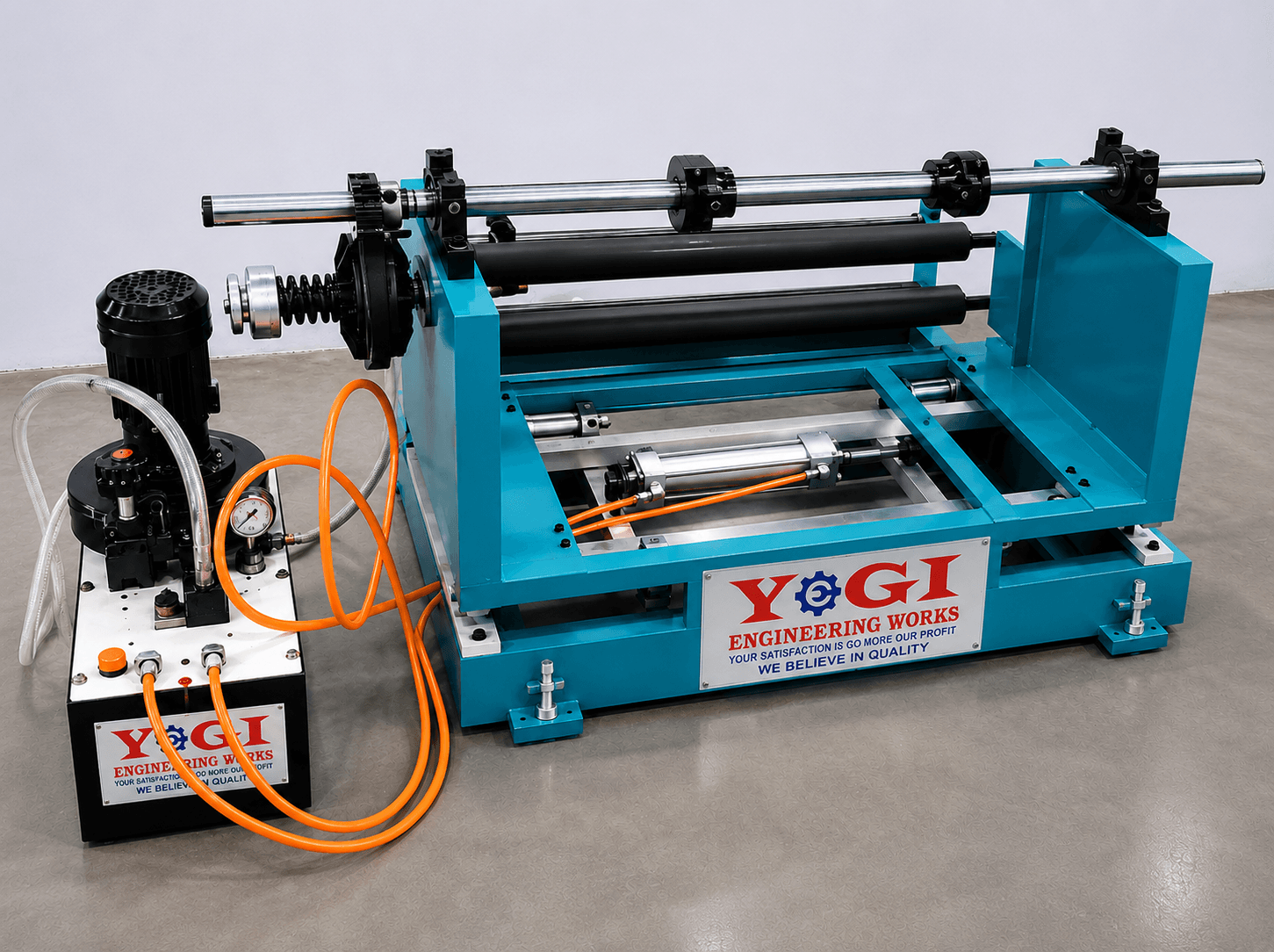

A modern web guiding system, sometimes called a web aligner, is a closed-loop control system with three working parts. At Yogi Engineering Works, the assembly is built around an SRA–TRA guide-roller frame driven by a hydro-pneumatic power pack, controlled by an edge sensor.

• The sensor continuously detects the position of the web edge (or a printed line, or the web centre) thousands of times per second.
• The controller compares the actual web position against the set reference position and calculates the exact correction required.
• The actuator — the hydro-pneumatic power pack acting on the SRA–TRA steering guide-roller assembly — physically pivots or shifts the rollers to nudge the web back onto its true path.

Because the loop runs continuously, the web is corrected in real time. The operator sets the desired edge position once, and the web aligner holds it there automatically regardless of how the parent roll behaves. Correction accuracy on a well-specified system is typically within ±0.1 to ±0.2 mm, which is far tighter than any operator could hold by hand.

The SRA–TRA naming refers to the steering and terminal guide-roller assemblies that physically carry the web through the correction zone. The hydro-pneumatic power pack matters because it combines the responsiveness of pneumatics with the steady, high force of hydraulics — important when steering a heavy, fast-moving web that resists being nudged. A purely manual or screw-driven guide simply cannot react at the speed a 300-metre-per-minute line demands, which is why automatic closed-loop guiding has become standard on serious converting lines worldwide and, increasingly, across India.

Edge, Line and Centre Guiding — Choosing the Right Sensor

The sensing method is what you select to match your material and job. There are three common modes, and picking the correct one is the difference between flawless tracking and constant nuisance corrections.

Edge guiding

The sensor tracks one edge of the web. This is the most common mode for slitting, suitable for opaque and most transparent films, paper, and foil. It works wherever the web edge is clean and consistent — which describes the vast majority of slitting jobs.

Line guiding

The sensor follows a printed line, stripe, or pattern on the web rather than the physical edge. This is essential when the edge itself is unreliable — for example pre-printed laminate where registration to the print matters more than to the trim edge.

Centre guiding

Two sensors track both edges and the system steers to the calculated centre. This is the right choice for webs with variable width or wavy edges, where holding the centreline keeps slitting symmetrical even as the overall width fluctuates.

Sensor technology also matters: infrared and ultrasonic sensors handle transparent films that optical sensors struggle to detect, while standard photo-optical sensors are economical and reliable for opaque substrates. Matching the sensor to your substrate mix is something our engineers size for each customer.

Where the Guide Sits on a Slitting Line — Unwind vs Rewind

Placement decides what the guide can actually fix, and it is one of the most misunderstood points among first-time buyers.

Unwind-side guiding

Mounted between the unwind stand and the slitting knives, an unwind guide corrects drift that the parent roll introduces. It ensures the web enters the knife section perfectly positioned, so every slit lands exactly on spec. For most slitting and rewinding operations, this is the single most important location — fix the web before you cut it, and the downstream rolls follow naturally.

Rewind-side guiding

Mounted near the rewind shafts, this corrects edge position as the finished roll builds, giving clean, flush roll edges. It is valuable when edge quality of the finished roll is critical, such as in premium label and tape stock.

On a typical slitting rewinding machine, an unwind guide handles the bulk of the problem; demanding lines add a rewind guide as well. The guide assembly works hand-in-hand with the line's idler and spreader rollers — well-balanced industrial rubber rollers and bow-expander rollers keep the web flat so the sensor has a clean, wrinkle-free edge to read. A good guide on worn, misaligned rollers will fight a losing battle, so the two should always be specified together.

A third location worth knowing is the intermediate or process-section guide, placed before a critical operation such as printing, coating, or laminating that may sit inline with slitting. Wherever the web must hit a fixed reference — a knife, a print cylinder, a coating head — a guide just ahead of it keeps that operation on target. The guiding principle is simple: correct the web immediately upstream of whatever cannot tolerate drift.

Retrofit vs built-in — both are practical

You do not need to replace your existing machine to gain web guiding. There are two routes.

• Built-in: Specifying the guide as part of a new slitting rewinding machine is the cleanest approach — the frame, power pack, and controls are integrated, alignment is factory-set, and there is a single point of support.
• Retrofit: Most older slitters in India can be upgraded. The SRA–TRA guide-roller assembly and hydro-pneumatic power pack are designed to be installed into an existing web path with modest mechanical modification. A retrofit typically takes one to two days on site and immediately lifts the quality of an ageing line without the capital of a full machine replacement.

For SMEs running a serviceable but drift-prone slitter, a retrofit web guiding system is usually the highest-return upgrade available, because it directly attacks the scrap rate without a large outlay.

ROI and Payback — The Numbers That Justify It

The business case is straightforward once you quantify the waste. Consider a representative mid-size converter running a single slitting line:

• Annual throughput: 100 tonnes of film and laminate
• Average material value: ₹150 per kg
• Waste from drift before correction: ~3 percent

That 3 percent equals 3,000 kg, or roughly ₹4.5 lakh of material scrapped every year — and that figure ignores lost machine hours, rejected-roll reprocessing, late-delivery penalties, and the labour spent manually nudging webs and re-running jobs. A guiding system does not eliminate waste entirely, but cutting drift-related loss from 3 percent to well under 1 percent is realistic, recovering ₹3 lakh or more annually.

Against that recovery, a web guiding system is a modest capital item relative to the slitter itself. In most installations we see, the payback period works out to somewhere between four and ten months — and after payback, the recovered margin flows straight to the bottom line every year the machine runs. Add the harder-to-quantify gains of fewer customer rejections, faster job setup, and the ability to run thinner, higher-value films confidently, and the investment becomes one of the clearest decisions on the shop floor.

There is a strategic dimension too. As Indian converters move down-gauge — running 12-micron BOPP instead of 15, or thinner laminates to save material cost — the webs become floppier and far harder to track manually. The thinner the film, the more drift hurts, and the more a guide earns its keep. Customers supplying organised retail and export markets also face tightening width and edge-quality specifications that simply cannot be met by hand. In that sense a guide is not only a cost-saver but an enabler: it lets a small unit bid for higher-value, tighter-tolerance work it could not reliably deliver before. For an MSME planning to grow, that capability often matters more than the scrap saving on its own.

Why Yogi Engineering Works

Yogi Engineering Works is an Ahmedabad, Gujarat based manufacturer of slitting, rewinding, and web-handling equipment, and an ISO 9001:2015 certified company. We build our web guiding systems around the SRA–TRA guide-roller assembly and a robust hydro-pneumatic power pack, with edge, line, and centre sensing options matched to your exact substrate — transparent film, opaque laminate, paper, or foil. Whether you need a guide built into a new line or retrofitted to an existing slitter, our engineers size the system to your web width, speed, and material before you commit.

We supply at factory-direct pricing, handle on-site installation and alignment, train your operators, and back every machine with lifetime spares support. Our equipment runs in plants across India and is exported to the UAE, Saudi Arabia, Bangladesh, Sri Lanka, Kenya, and South-East Asia. For a no-obligation assessment of your slitting line's drift losses, reach us on WhatsApp at +91-8487884122.

Frequently Asked Questions

Can a web guiding system be fitted to my existing slitting machine?

Yes. In most cases an existing slitter can be retrofitted with an SRA–TRA guide-roller assembly and hydro-pneumatic power pack within one to two days, with only modest modification to the web path.

Which sensor type do I need for transparent BOPP film?

Transparent films are best handled with infrared or ultrasonic edge sensors, which detect the edge reliably where standard optical sensors can struggle. We select the sensor based on your specific material mix.

How accurate is automatic web guiding?

A well-specified system typically holds the web within ±0.1 to ±0.2 mm of the set position — far tighter and more consistent than any manual correction.

Should the guide go on the unwind or the rewind side?

For most slitting work the unwind side is the priority, because correcting the web before it reaches the knives keeps every slit on spec. Demanding lines add a rewind-side guide for perfectly flush finished-roll edges.
