Surface Slitting Rewinding Machine
Surface Slitting Rewinding Machine from Yogi Engineering Works — A surface (double-drum type) slitting rewinding machine that winds rolls on the surface between two drums for excellent roll hardness and large-diameter winding. 500–2500 mm width, jumbo rolls up to 1000 kg, pan-India delivery with lifetime spares support.
Factory-direct pricing, custom-built to your width, speed & material. Share your requirement for a quick quotation.
- Made in India
- Pan-India delivery in 4–6 weeks
- Lifetime spares support
- Machine StructureMS Plate Heavy Duty
- Working Width500 - 2500 mm (customisable)
- Motor3 HP - 12 HP AC
- Control PanelAC Digital Frequency Drive
- Rewinding Speed150 MPM (up to 300 MPM optional)
- Jumbo Roll CapacityUp to 1000 kg
About this machine

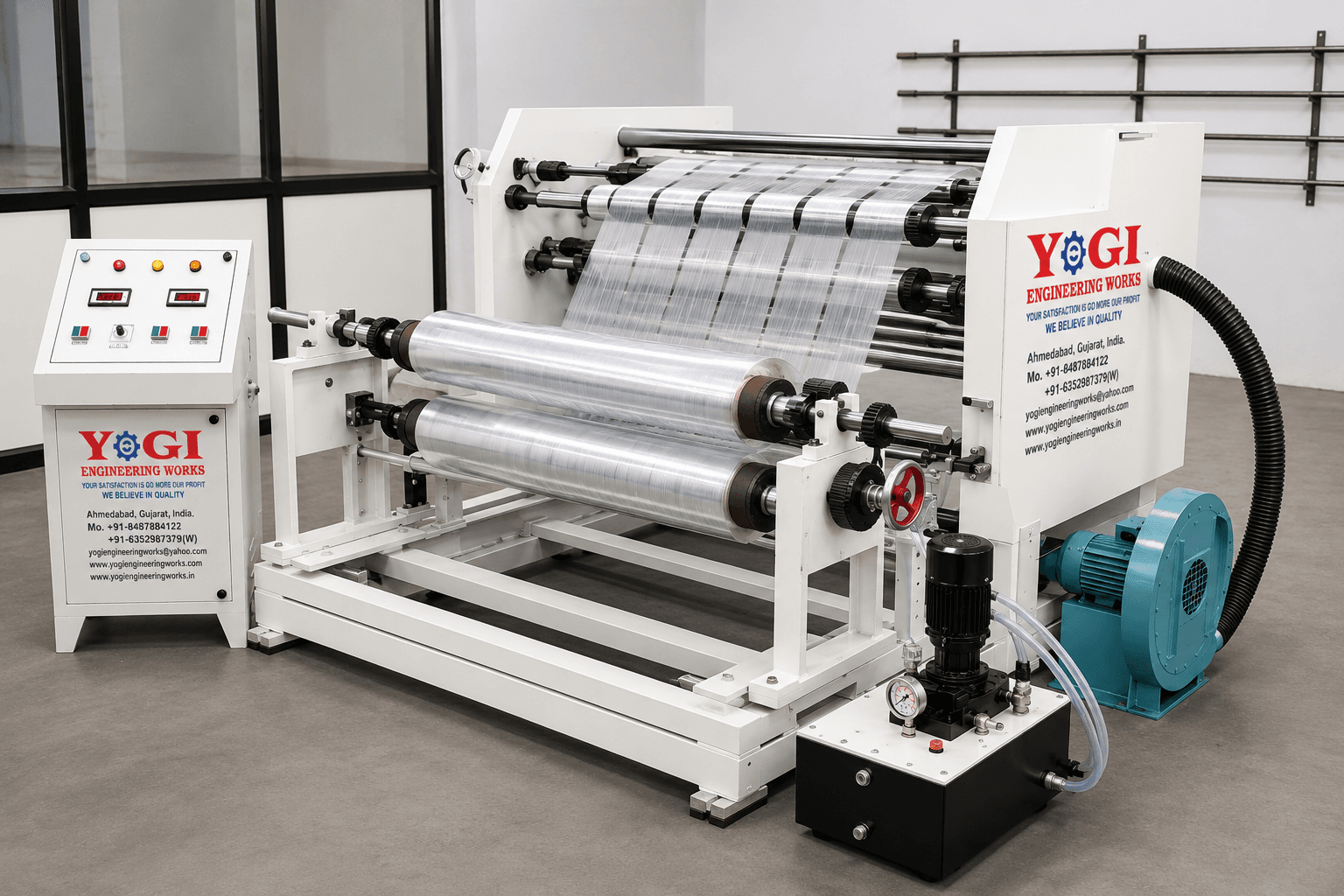

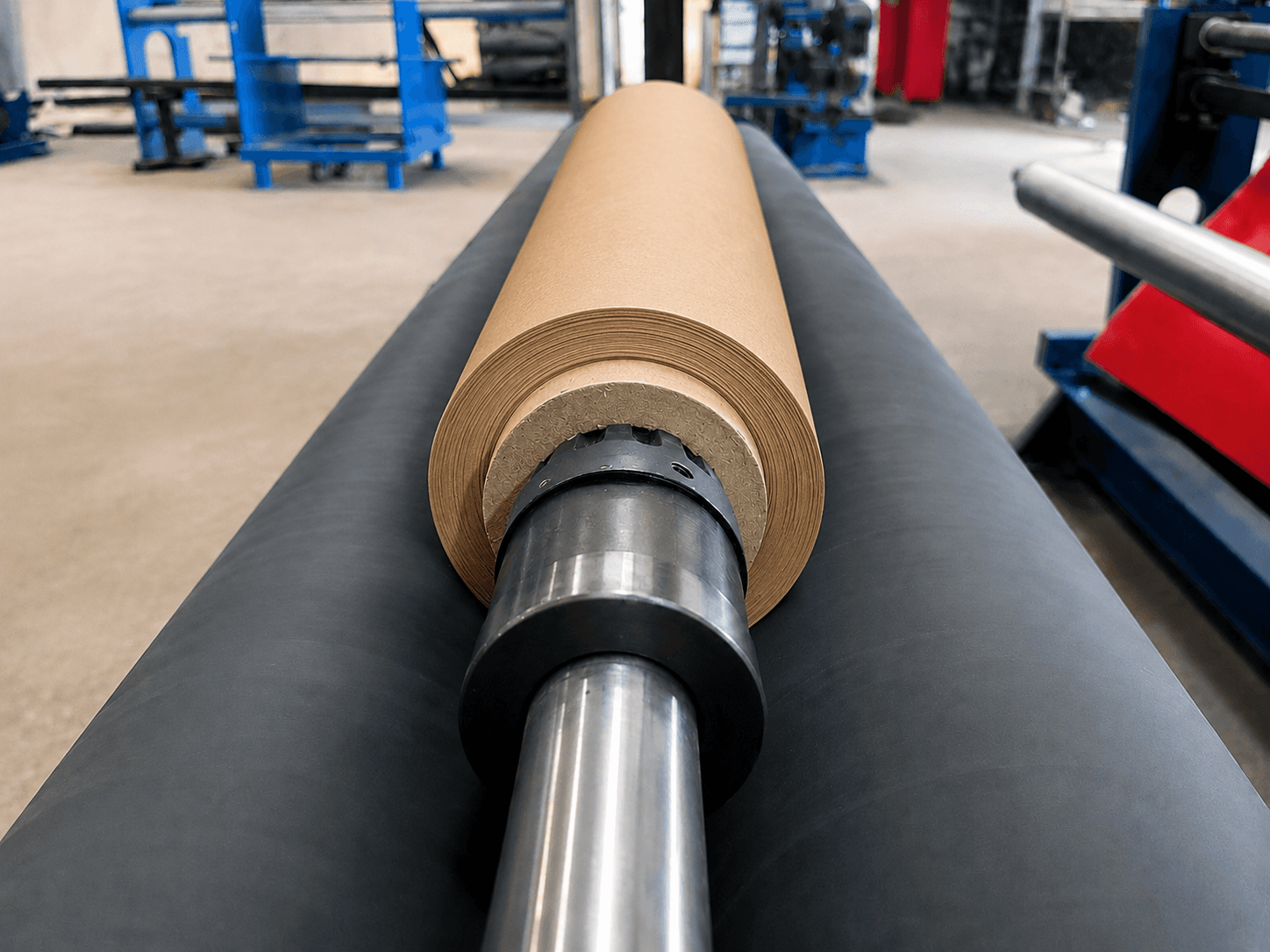

A surface (double-drum type) slitting rewinding machine that winds rolls on the surface between two drums for excellent roll hardness and large-diameter winding. Manufactured by Yogi Engineering Works in Ahmedabad, the Surface Slitting Rewinding Machine is built on an MS plate heavy-duty structure with a precision cutter (knife) slitting assembly, AC digital frequency drive and mechanical brake tension control. It supports 500–2500 mm working widths, jumbo rolls up to 1000 kg, roll diameters up to 1000 mm and rewinding speeds of 150 MPM (up to 300 MPM optional), in drum, center-shaft or surface (double-drum) winding configurations. Best suited to film, paper and laminated materials requiring tight, hard rolls. Each Surface Slitting Rewinding Machine is factory-tested before dispatch, delivered pan-India in 4–6 weeks and backed by on-site commissioning and lifetime spares support.
Full specifications
| Machine Structure | MS Plate Heavy Duty |
|---|---|
| Working Width | 500 - 2500 mm (customisable) |
| Motor | 3 HP - 12 HP AC |
| Control Panel | AC Digital Frequency Drive |
| Rewinding Speed | 150 MPM (up to 300 MPM optional) |
| Jumbo Roll Capacity | Up to 1000 kg |
| Roll Diameter | Up to 1000 mm |
| Winding Type | Drum / Center Shaft / Surface |
| Power Supply | Three Phase 415 V / 50 Hz |
| Country of Origin | Made in India |
Key features
- MS plate heavy-duty machine structure
- AC digital frequency drive control panel
- Auto start / stop with emergency stop button
- Length counting meter & speed-adjustable sensor
- Mechanical brake system for jumbo roll tension
- Slitting system with cutter (knife) assembly
- Hydraulic web (edge) guide system for clean finishing
- Chuck-nut-bearing mechanical shaft unwinder / rewinder
Optional add-ons
- Pneumatic / air shaft upgrade
- Auto tension control system
- Edge / web guide system (hydraulic)
- High-speed 3-drive / 4-drive configuration
